R1191L031D-TR, R1191N030B-TR-FE 300mALDO REGULATOR

Nisshinbo

Description

R1191x SERIES 300mA LDO REGULATOR with the Reverse Current Protection NO.EA-229-220315 OUTLINE R1191x Series are a low supply current voltage regulato.

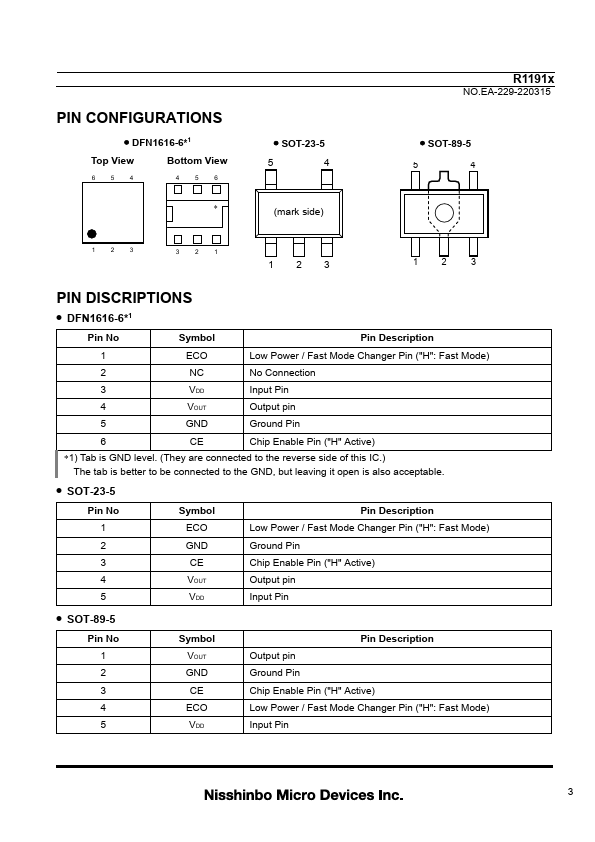

1 ECO Low Power / Fast Mode Changer Pin ("H": Fast Mode) 2 NC No Connection 3 VDD Input Pin 4 VOUT Output pin 5 GND Ground Pin 6 CE.

📥 Download Datasheet

R1191L031D-TR Datasheet Preview — This datasheet PDF includes multiple part numbers: R1191L031D-TR, R1191N030B-TR-FE. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: R1191L031D-TR, R1191N030B-TR-FE
Manufacturer: Nisshinbo
File Size: 4.42 MB
Datasheet: R1191N030B-TR-FE-Nisshinbo.pdf
Description: 300mALDO REGULATOR
Note: This datasheet PDF includes multiple part numbers: R1191L031D-TR, R1191N030B-TR-FE.
Please refer to the document for exact specifications by model.

Features

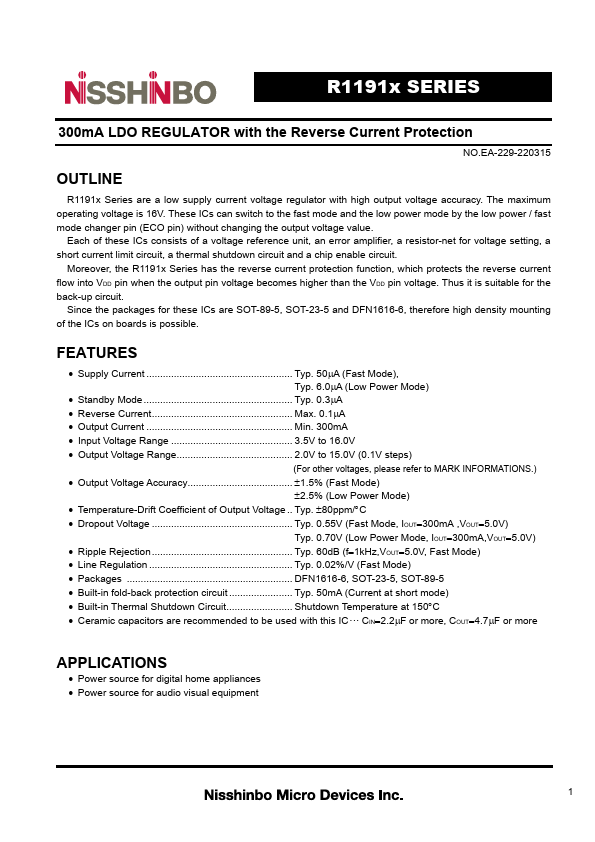

* Supply Current Typ. 50µA (Fast Mode), Typ. 6.0µA (Low Power Mode)
* Standby Mode Typ. 0.3µA
* Reverse Current Max. 0.1µA
* Output Current Min. 300mA
* Input Voltage Range 3.5V to 16.0V
* Output Voltage Range 2.0V to 15.0V (0.1V steps) (For other

Applications

* Power source for digital home appliances

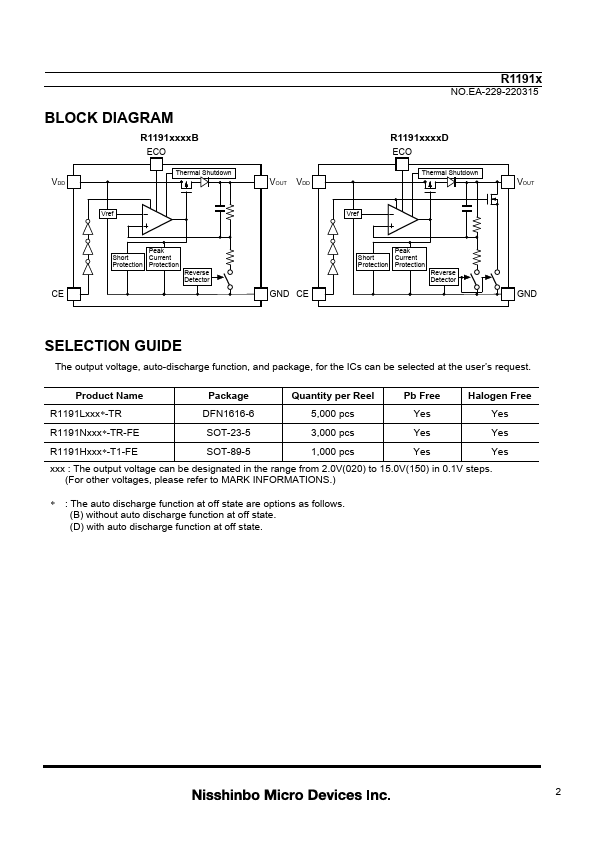

* Power source for audio visual equipment 1 BLOCK DIAGRAM R1191xxxxB ECO VDD Thermal Shutdown Vref Short Protection Peak Current Protection Reverse Detector CE VOUT VDD GND CE R1191x NO. EA-229-220315 R1191xxxxD ECO Thermal Shutdow
