| Part number | R1191L047B-TR, R1191N030B-TR-FE |
|---|---|
| Manufacturer | Nisshinbo |
| File Size | 4.42 MB |

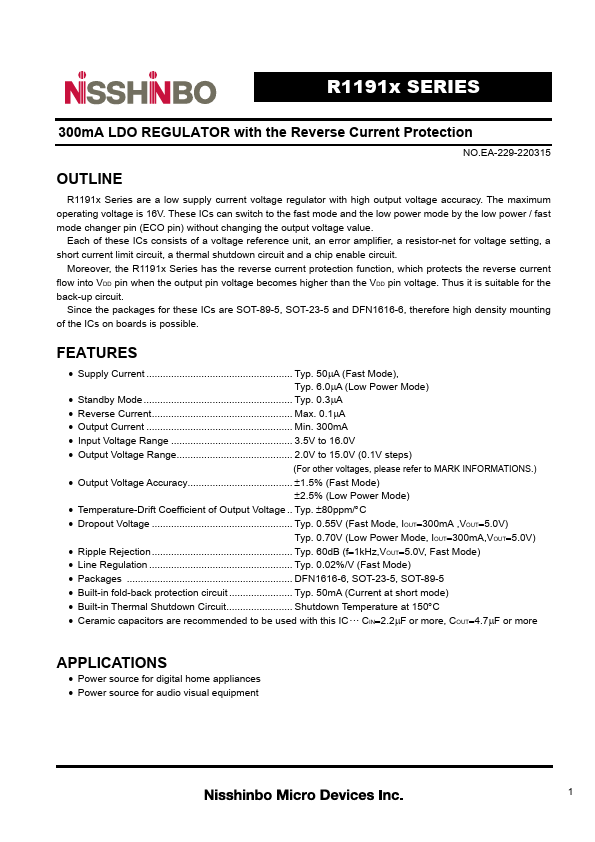

| Description | 300mALDO REGULATOR |
| Datasheet |
 R1191N030B-TR-FE-Nisshinbo.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: R1191L047B-TR, R1191N030B-TR-FE. Please refer to the document for exact specifications by model. |

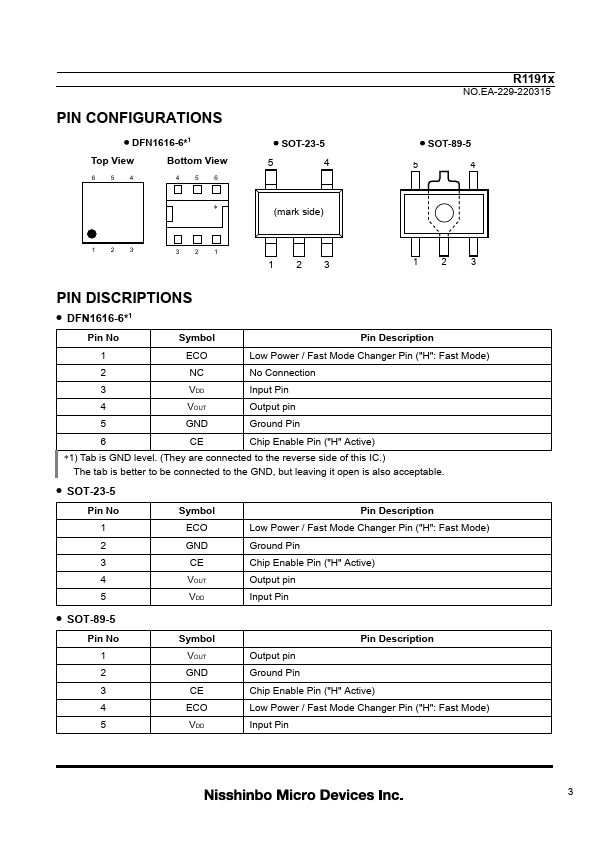

1 ECO Low Power / Fast Mode Changer Pin ("H": Fast Mode) 2 NC No Connection 3 VDD Input Pin 4 VOUT Output pin 5 GND Ground Pin 6 CE Chip Enable Pin ("H" Active) ∗1) Tab is GND level.(They are connected to the reverse side of this IC.) The tab is better to be connected to the GND, but leaving it open is also acceptable. SOT-23-5 Pin No 1 2 3 4 5 Symbol ECO GND CE VOUT VDD Pin Description Low Power / Fast Mode Changer Pin ("H": Fast Mode) Ground Pin Chip Enable Pi
