R1243S, R1243K 30V Input 2A Buck DC/DC Converter

Nisshinbo

Description

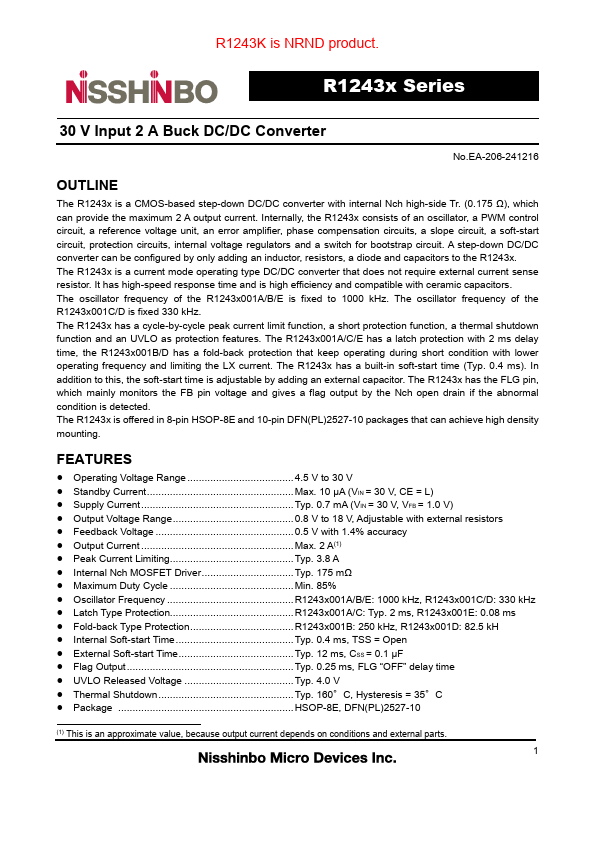

R1243K is NRND product.R1243x Series 30 V Input 2 A Buck DC/DC Converter No.EA-206-241216 OUTLINE The R1243x is a CMOS-based step-down DC/DC conve.

📥 Download Datasheet

R1243S Datasheet Preview — This datasheet PDF includes multiple part numbers: R1243S, R1243K. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: R1243S, R1243K
Manufacturer: Nisshinbo
File Size: 1.14 MB
Datasheet: R1243K-Nisshinbo.pdf
Description: 30V Input 2A Buck DC/DC Converter
Note: This datasheet PDF includes multiple part numbers: R1243S, R1243K.
Please refer to the document for exact specifications by model.

Features

* The R1243x001A/C/E has a latch protection with 2 ms delay time, the R1243x001B/D has a fold-back protection that keep operating during short condition with lower operating frequency and limiting the LX current. The R1243x has a built-in soft-start time (Typ. 0.4 ms). In addition to this, the soft-s

Applications

* Digital Home Appliances
* Hand-held Communication Equipment: Cameras, VCRs, Camcorders
* Battery-powered Equipment

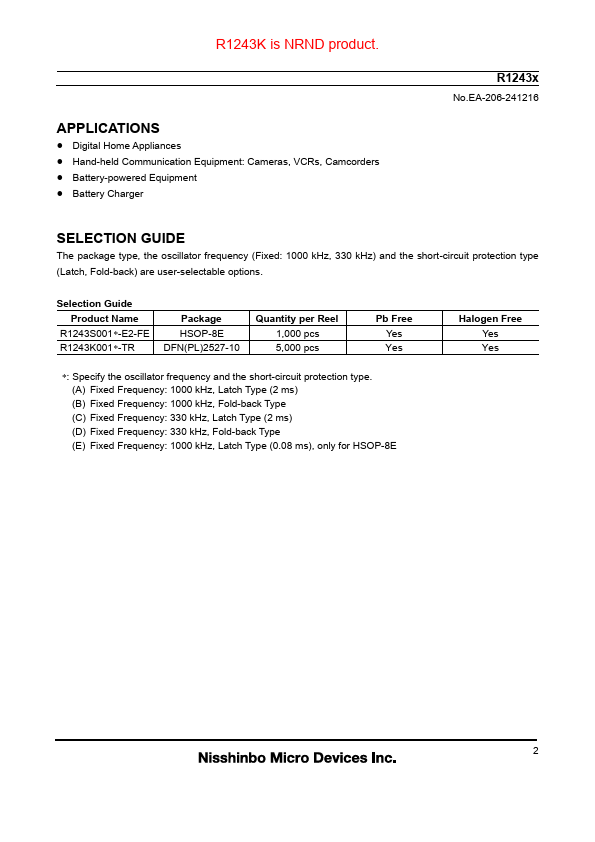

* Battery Charger R1243x No. EA-206-241216 SELECTION GUIDE The package type, the oscillator frequency (Fixed: 1000 kHz, 330 kHz) and the short-circuit
