R1290K - 3ch DC/DC converter

Nisshinbo

📥 Download Datasheet

R1290K Datasheet Preview — Preview of R1290K PDF

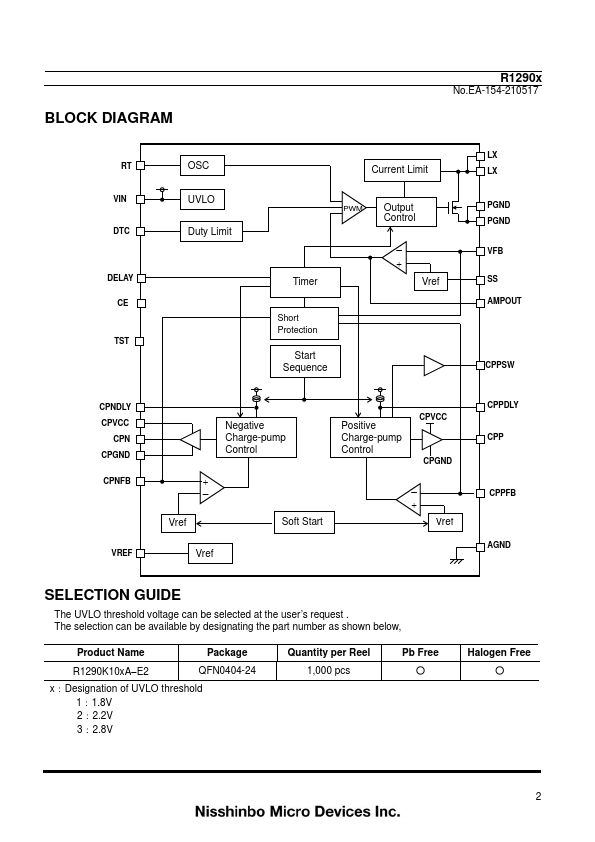

datasheet Preview Page 2

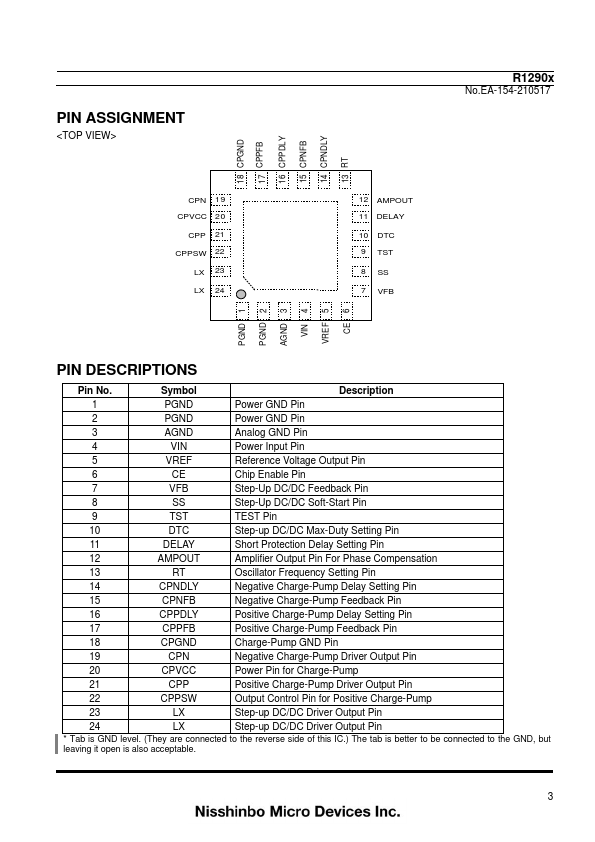

datasheet Preview Page 3

Datasheet Details

Part number	R1290K
Manufacturer	Nisshinbo
File Size	1.27 MB
Description	3ch DC/DC converter
Datasheet	R1290K-Nisshinbo.pdf

R1290K Product details

Description

Pin No.

Features

Operating Voltage Range 2.0V ~ 5.5V.

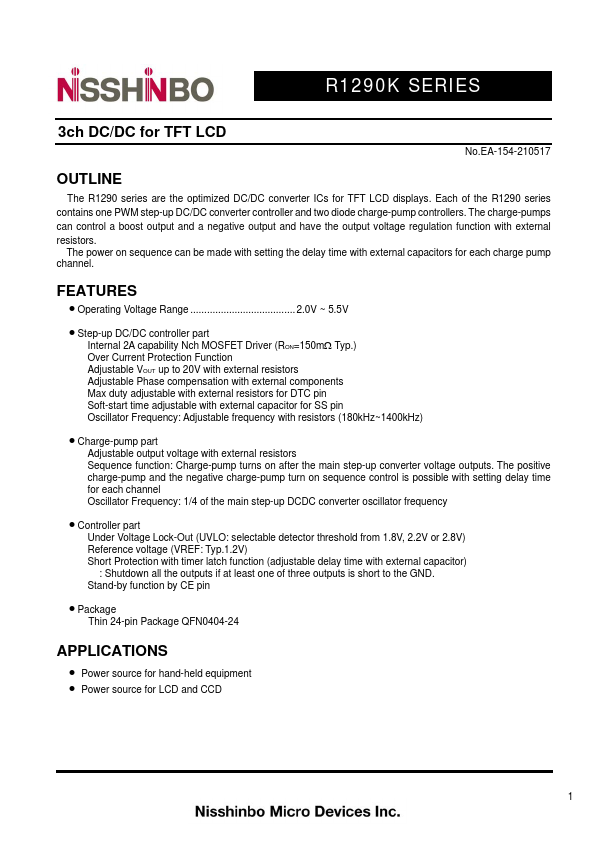

Step-up DC/DC controller part Internal 2A capability Nch MOSFET Driver (RON=150mΩ Typ. ) Over Current Protection Function Adjustable VOUT up to 20V with external resistors Adjustable Phase compensation with external components Max duty adjustable with external resistors for DTC pin Soft-start time adjustable with external capacitor for SS pin Oscillator Frequency: Adjustable frequency with resistors (180kHz~1400kHz).
Charge-pump pa.
