R1800K - Low Quiescent Current Buck DC/DC Converter

📥 Download Datasheet

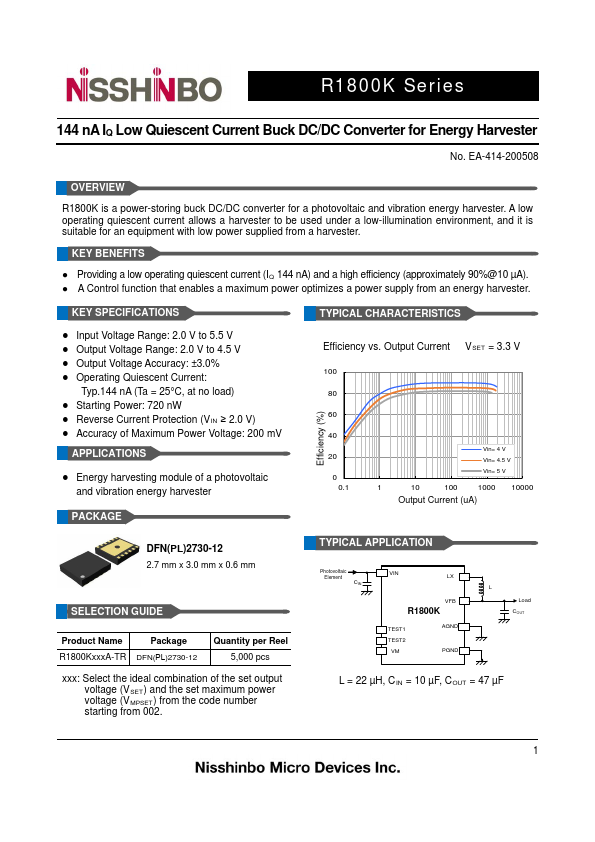

Preview of R1800K PDF

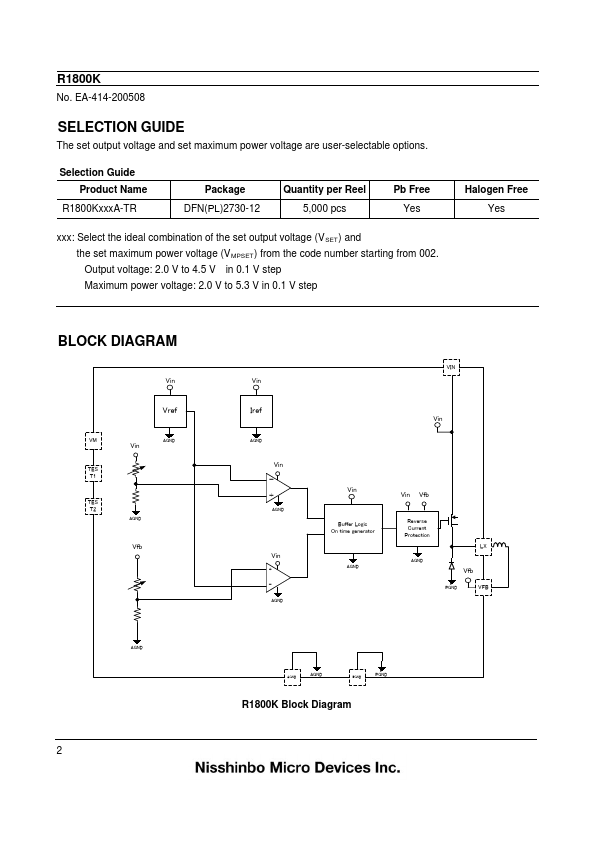

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
R1800K
Manufacturer
Nisshinbo
File Size
732.82 KB
Datasheet
R1800K-Nisshinbo.pdf
Description
Low Quiescent Current Buck DC/DC Converter

R1800K Product details

Description

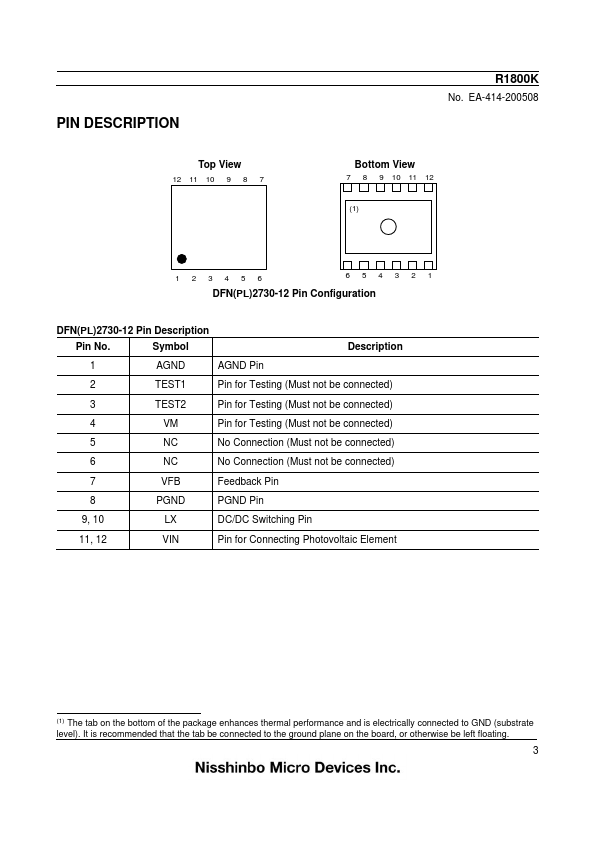

Top View 12 11 10 9 8 7 R1800K No.EA-414-200508 Bottom View 7 8 9 10 11 12 (1) 123456 1 654321 DFN(PL)2730-12 Pin Configuration DFN(PL)2730-12 Pin Description Pin No.Symbol Description 1 AGND AGND Pin 2 TEST1 Pin for Testing (Must not be connected) 3 TEST2 Pin for Testing (Must not be connected) 4 VM Pin for Testing (Must not be connected) 5 NC No Connection (Must not be connected) 6 NC No Connection (Must not be connected) 7 VFB Feedback Pin 8 PGND PGND Pin 9,
