R1801K - Buck DC/DC Converter

📥 Download Datasheet

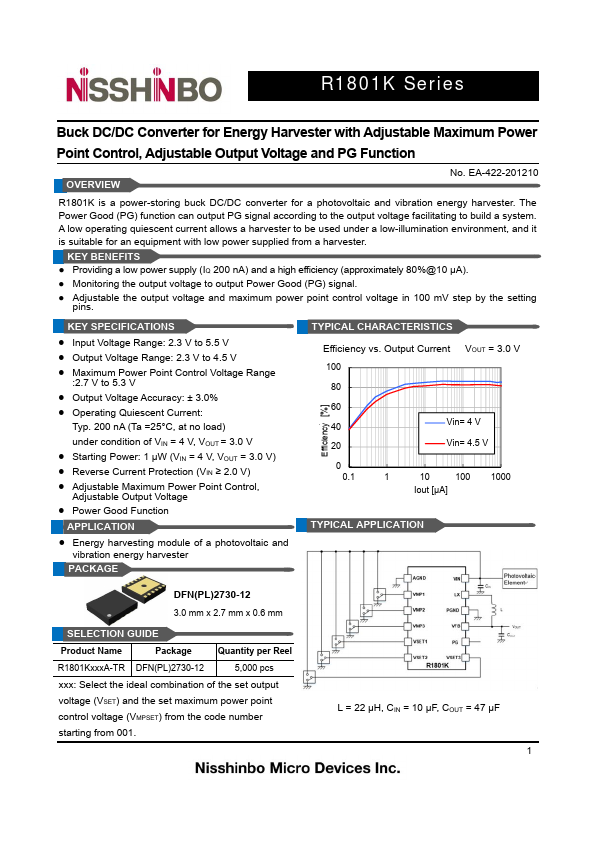

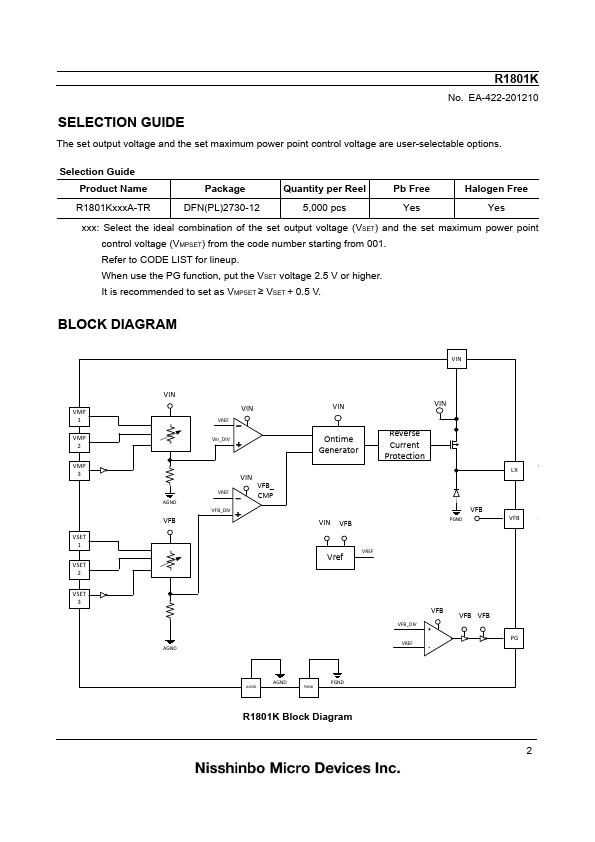

Preview of R1801K PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
R1801K
Manufacturer
Nisshinbo
File Size
1.50 MB
Datasheet
R1801K-Nisshinbo.pdf
Description
Buck DC/DC Converter

R1801K Product details

Description

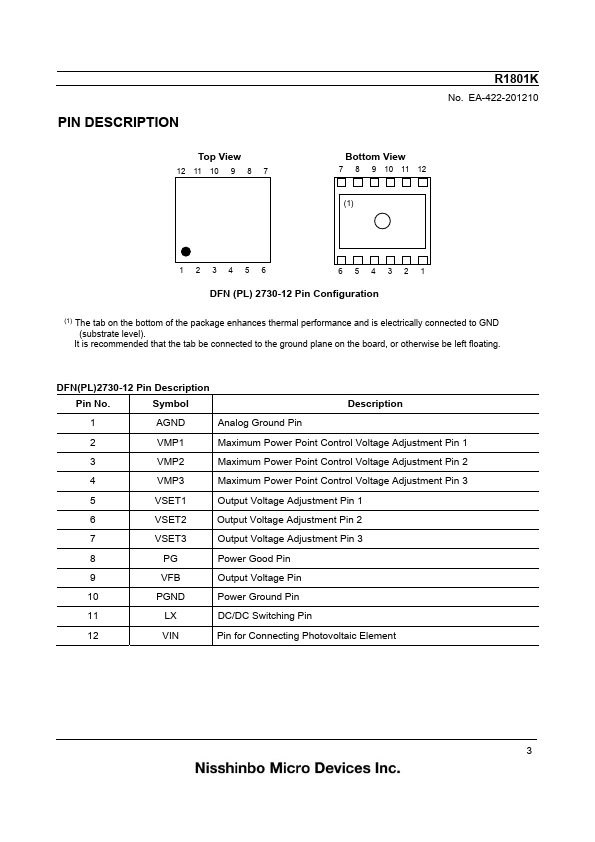

Top View 12 11 10 9 8 7 R1801K No.EA-422-201210 Bottom View 7 8 9 10 11 12 (1) 123456 654321 DFN (PL) 2730-12 Pin Configuration (1) The tab on the bottom of the package enhances thermal performance and is electrically connected to GND (substrate level).It is recommended that the tab be connected to the ground plane on the board, or otherwise be left floating.DFN(PL)2730-12 Pin Description Pin No.Symbol Description 1 AGND Analog Ground Pin 2 VMP1 Maximum Power Point Control Vol
