R8160H, R8160N 200mA 36V Input Ultra Low Supply Current VR

Nisshinbo

Description

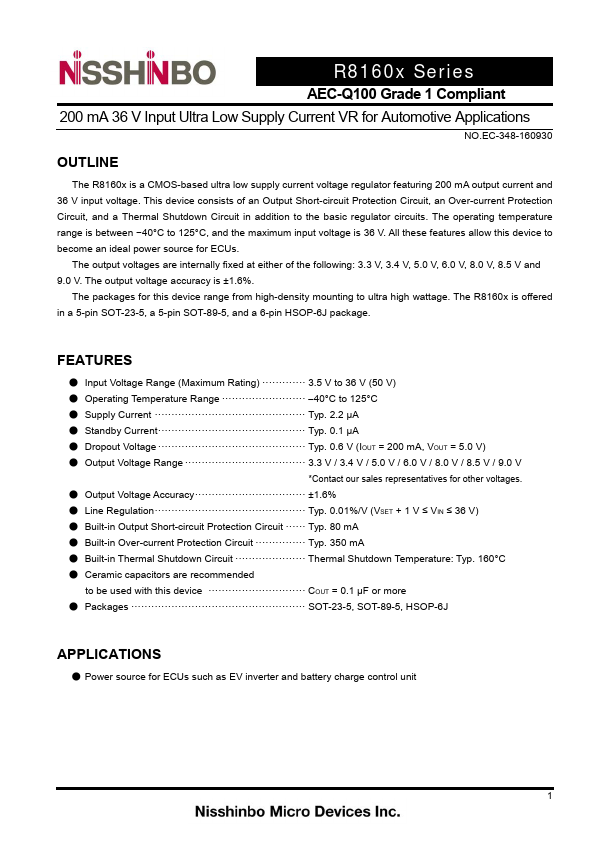

R8160x Series AEC-Q100 Grade 1 Compliant 200 mA 36 V Input Ultra Low Supply Current VR for Automotive Applications NO.EC-348-160930 OUTLINE The R8160x.

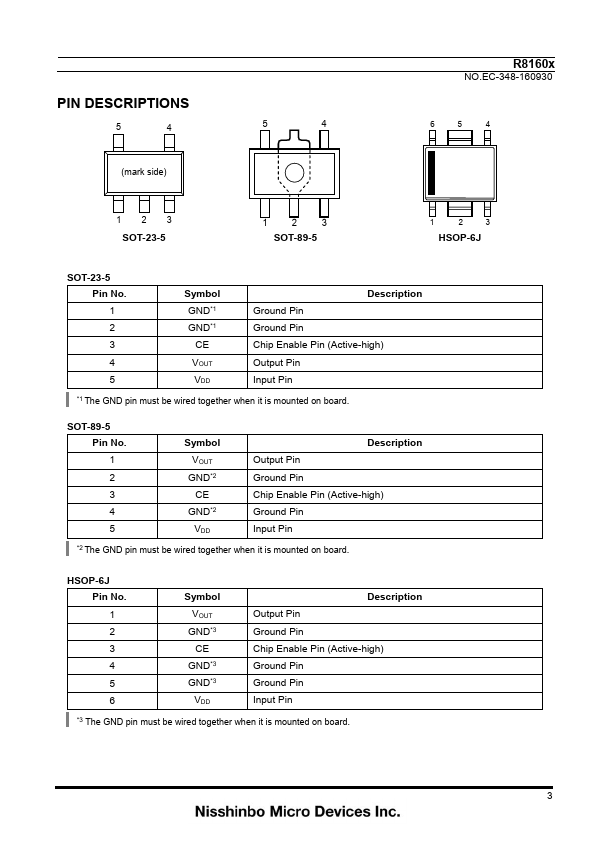

5 4 (mark side) 5 4 R8160x NO.

📥 Download Datasheet

R8160H Datasheet Preview — This datasheet PDF includes multiple part numbers: R8160H, R8160N. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: R8160H, R8160N
Manufacturer: Nisshinbo
File Size: 1.26 MB
Datasheet: R8160N-Nisshinbo.pdf
Description: 200mA 36V Input Ultra Low Supply Current VR
Note: This datasheet PDF includes multiple part numbers: R8160H, R8160N.
Please refer to the document for exact specifications by model.

Features

* allow this device to become an ideal power source for ECUs. The output voltages are internally fixed at either of the following: 3.3 V, 3.4 V, 5.0 V, 6.0 V, 8.0 V, 8.5 V and 9.0 V. The output voltage accuracy is ±1.6%. The packages for this device range from high-density mounting to ultra high watta

Applications

* NO. EC-348-160930 OUTLINE The R8160x is a CMOS-based ultra low supply current voltage regulator featuring 200 mA output current and 36 V input voltage. This device consists of an Output Short-circuit Protection Circuit, an Over-current Protection Circuit, and a Thermal Shutdown Circuit in addition to
