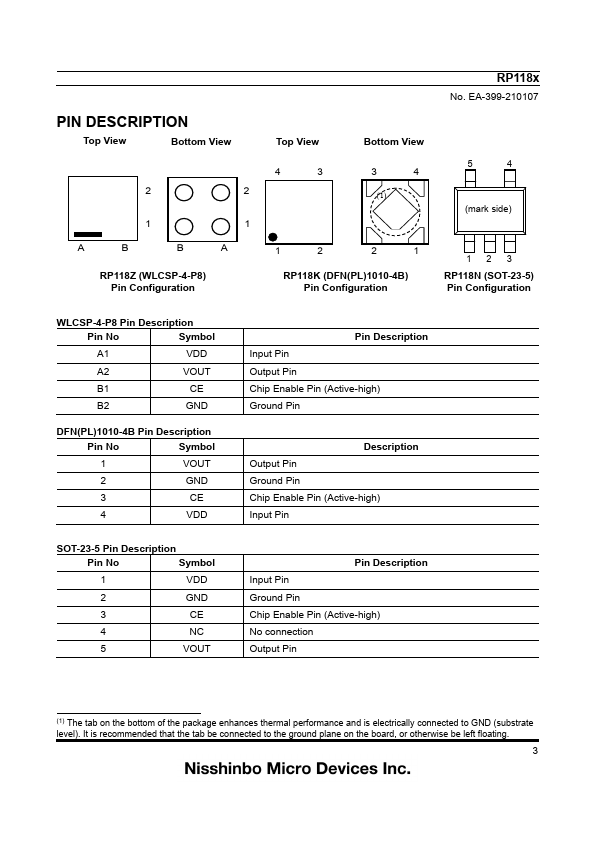

Top View Bottom View 2 2 1 1 A B B A RP118Z (WLCSP-4-P8) Pin Configuration RP118x No.
EA-399-210107 Top View 4 3 Bottom View 3 4 (1) 5 4 (mark side) 1 2 2 1 1 RP118K (DFN(PL)1010-4B) Pin Configuration 123 RP118N (SOT-23-5) Pin Configuration WLCSP-4-P8 Pin Description P

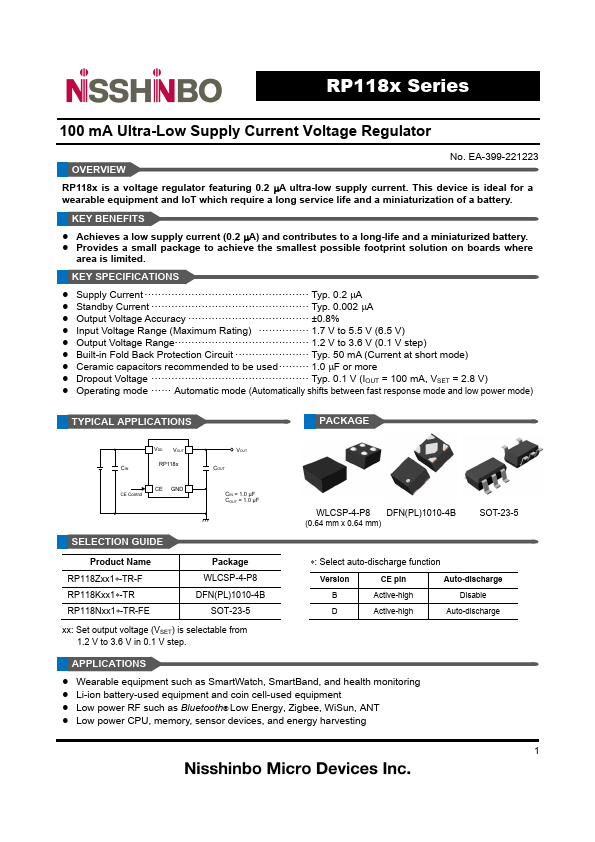

RP118x Series 100 mA Ultra-Low Supply Current Voltage Regulator OVERVIEW No.
EA-399-221223 RP118x is a voltage regulator featuring 0.2 µA ultra-low supply current.
This device is ideal for a wearable equipment and IoT which require a long service life and a miniaturization of a battery.
KEY BENEFITS Achieves a low supply current (0.2 µA) and contributes to a long-life and a miniaturized battery.
Provides a small package to achieve the smallest possible footprint solution
Datasheet Details
RP118Z121D5-TR-F, RP118K171D-TR
Nisshinbo
2.41 MB
100ma ultra-low supply current voltage regulator.
This datasheet PDF includes multiple part numbers: RP118Z121D5-TR-F, RP118K171D-TR.
Please refer to the document for exact specifications by model.
