RP170H, RP170N 300mA 10V Input LDO Regulator

Nisshinbo

Description

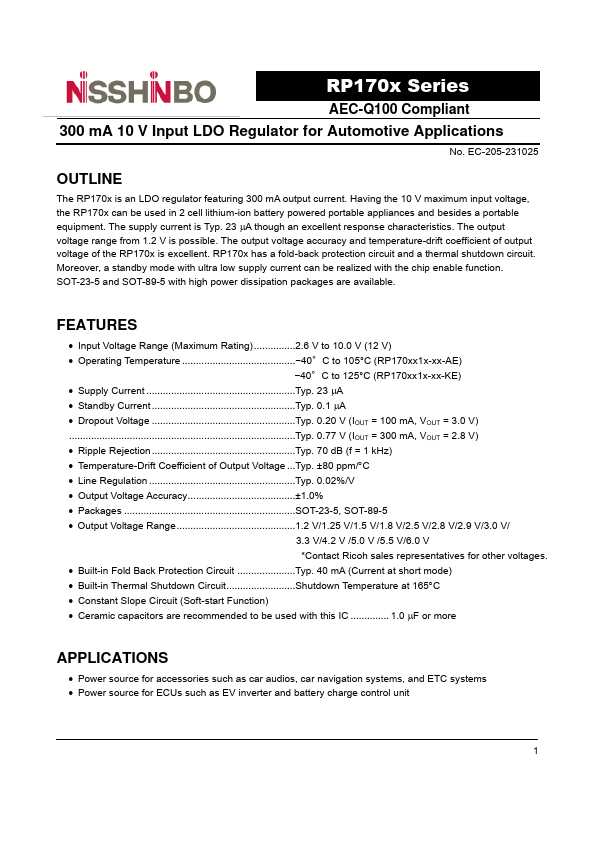

RP170x Series AEC-Q100 Compliant 300 mA 10 V Input LDO Regulator for Automotive Applications No.EC-205-231025 OUTLINE The RP170x is an LDO regulator .
5 4 (mark side) RP170x No.

📥 Download Datasheet

RP170H Datasheet Preview — This datasheet PDF includes multiple part numbers: RP170H, RP170N. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: RP170H, RP170N
Manufacturer: Nisshinbo
File Size: 1.15 MB
Datasheet: RP170N-Nisshinbo.pdf
Description: 300mA 10V Input LDO Regulator
Note: This datasheet PDF includes multiple part numbers: RP170H, RP170N.
Please refer to the document for exact specifications by model.

Features

* Input Voltage Range (Maximum Rating) 2.6 V to 10.0 V (12 V)
* Operating Temperature
* 40°C to 105°C (RP170xx1x-xx-AE)
* 40°C to 125°C (RP170xx1x-xx-KE)
* Supply Current Typ. 23 A
* Standby Current Typ. 0.1 A
* Dropout Voltage Typ. 0.20 V (IOU

Applications

* No. EC-205-231025 OUTLINE The RP170x is an LDO regulator featuring 300 mA output current. Having the 10 V maximum input voltage, the RP170x can be used in 2 cell lithium-ion battery powered portable appliances and besides a portable equipment. The supply current is Typ. 23 A though an excellent res
