| Part number | RP171N, RP171Q |
|---|---|
| Manufacturer | Nisshinbo |
| File Size | 1.43 MB |
| Description | 150mA 10V INPUT LDO REGULATOR |
| Datasheet |
 RP171Q-Nisshinbo.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: RP171N, RP171Q. Please refer to the document for exact specifications by model. |

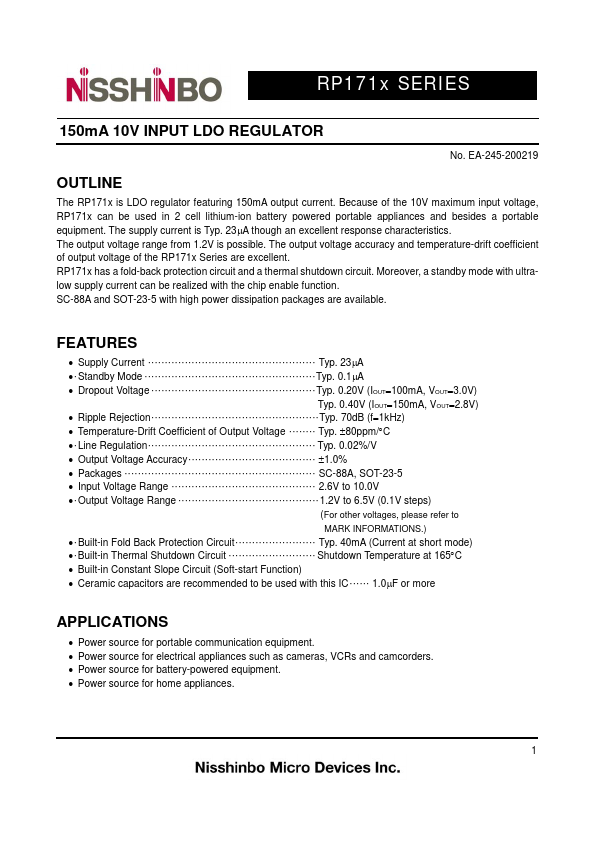

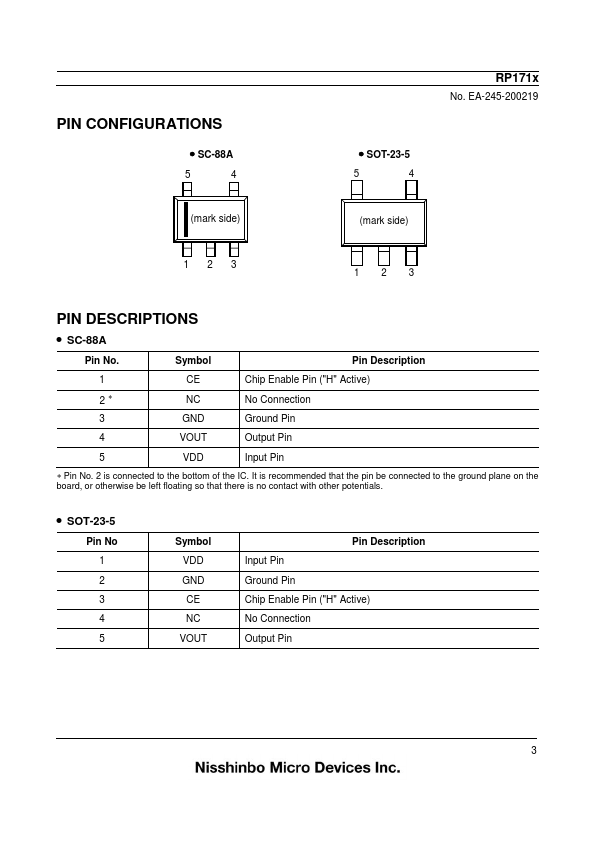

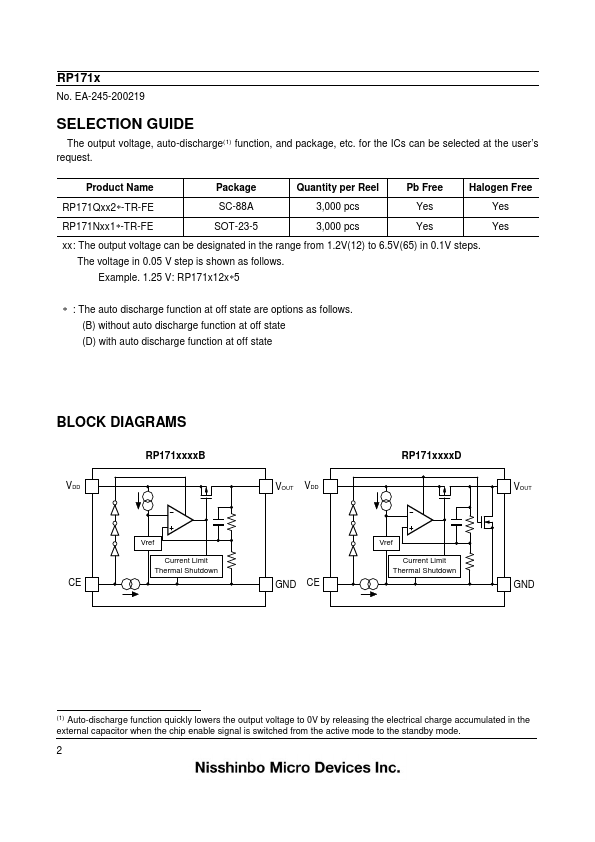

SC-88A Pin No.Symbol Pin Description 1 CE Chip Enable Pin ("H" Active) 2∗ NC No Connection 3 GND Ground Pin 4 VOUT Output Pin 5 VDD Input Pin ∗ Pin No.2 is connected to the bottom of the IC.It is recommended that the pin be connected to the ground plane on the board, or otherwise be left floating so that there is no contact with other potentials. SOT-23-5 Pin No 1 2 3 4 5 Symbol VDD GND CE NC VOUT Pin Description Input Pin Ground Pin Chip Enable Pin
