Top View 4 3 Bottom View 3 4 (1) 5 4 (mark side) RP173x No.
EA-256-230417 5 4 (mark side) 1 2 2 11 RP173K [DFN(PL)1010-4] Pin Configuration 123 RP173Q (SC-88A) Pin Configuration 123 RP173N (SOT-23-5) Pin Configuration RP173K Pin Descriptions Pin No.
Symbol 1 VOUT 2 GND
RP173Q(SC-88A) is the NRND product as of April,2023 RP173x Series 11 V Input 150 mA LDO No.

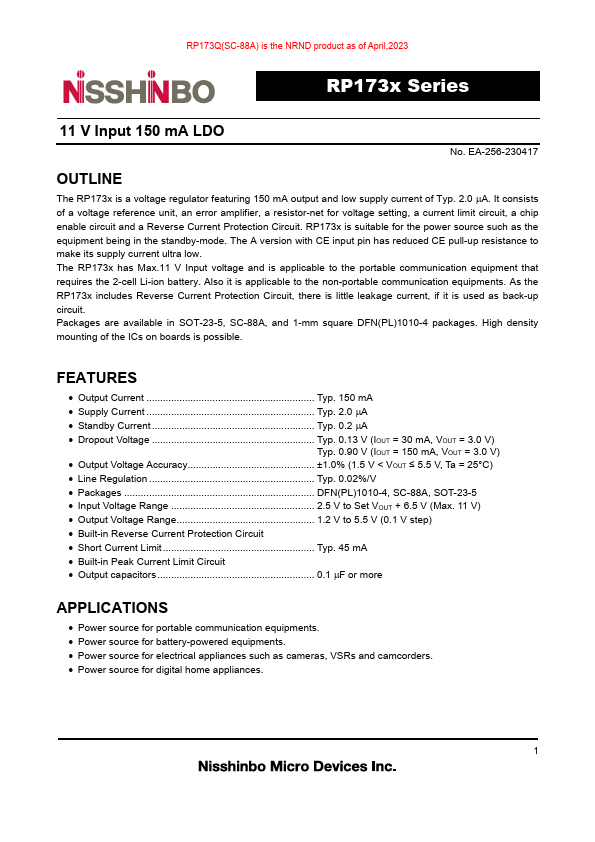

EA-256-230417 OUTLINE The RP173x is a voltage regulator featuring 150 mA output and low supply current of Typ.
2.0 µA.

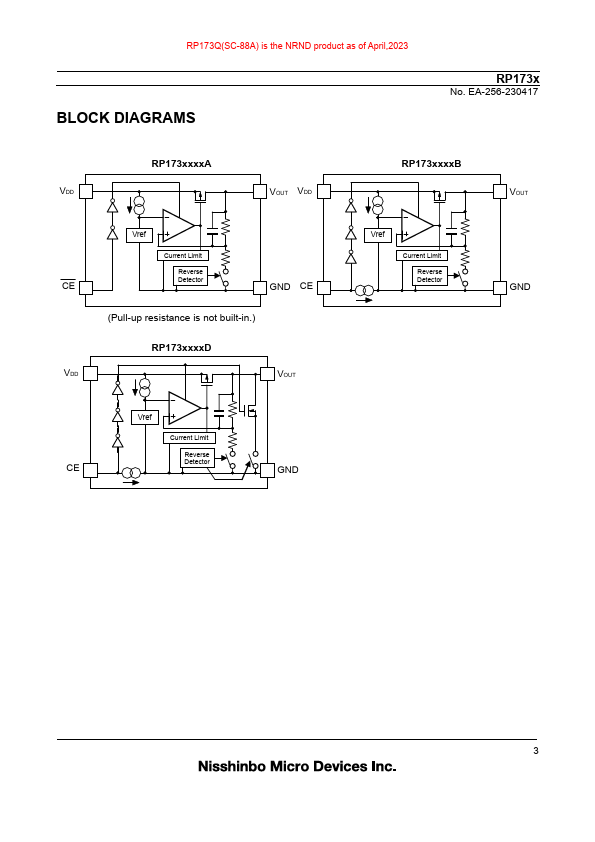

It consists of a voltage reference unit, an error amplifier, a resistor-net for voltage setting, a current limit circuit, a chip enable circuit and a Reverse Current Protection Circuit.
RP173x is suitable for the power source such as the equipment being in the standby-mode.
The A versi

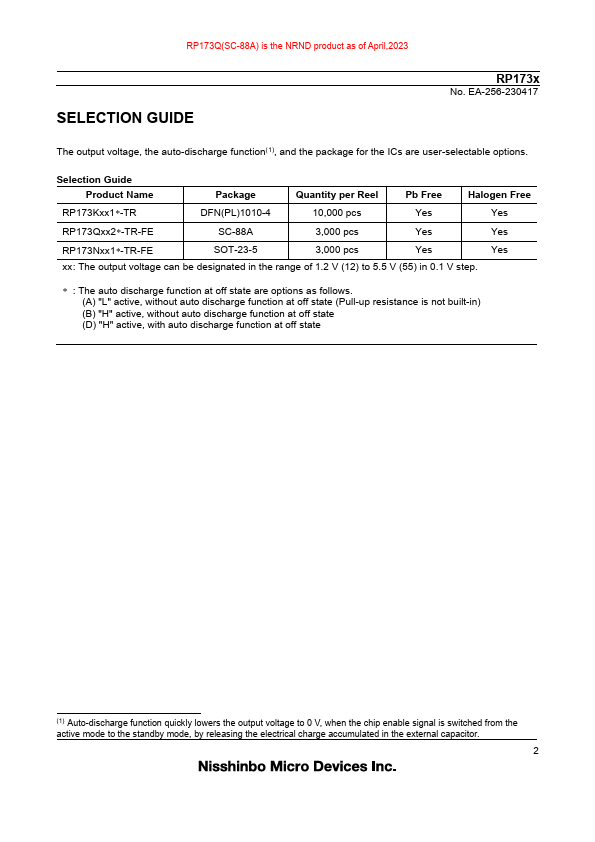

RP173K251B-TR Features
* Output Current Typ. 150 mA
* Supply Current Typ. 2.0 µA
* Standby Current Typ. 0.2 µA
* Dropout Voltage Typ. 0.13 V (IOUT = 30 mA, VOUT = 3.0 V) Typ. 0.90 V (IOUT = 150 mA, VOUT = 3.0 V)
* Output Voltage Accuracy ±1.0% (1.5 V < VOUT ≤ 5.5 V, Ta = 25°C)
RP173N181D-TR-FE-Nisshinbo.pdf
Datasheet Details
RP173K251B-TR, RP173N181D-TR-FE
Nisshinbo
1.55 MB
11v input 150ma ldo.
This datasheet PDF includes multiple part numbers: RP173K251B-TR, RP173N181D-TR-FE.
Please refer to the document for exact specifications by model.
