RP202N, RP202K - Low Power / Fast Mode Alternative 200mA LDO Regulator

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RP202N, RP202K. Please refer to the document for exact specifications by model.

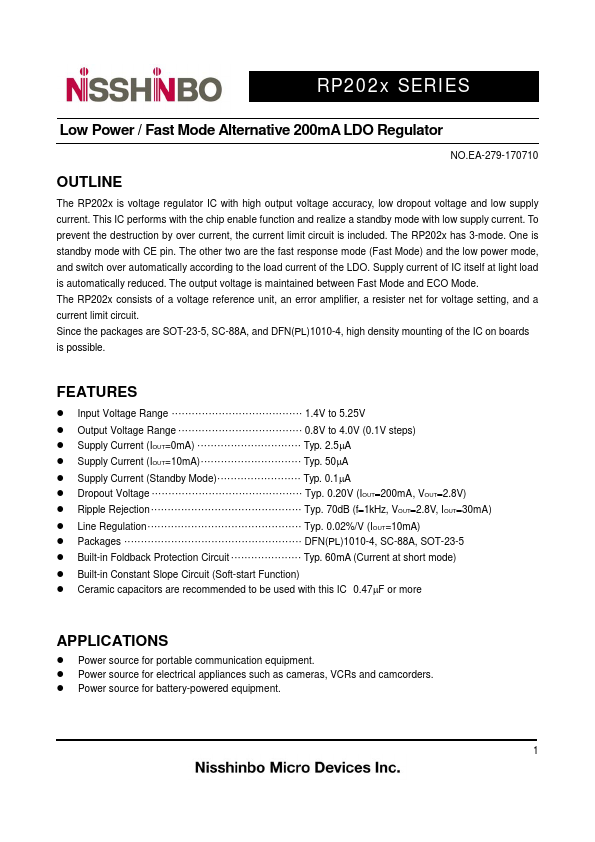

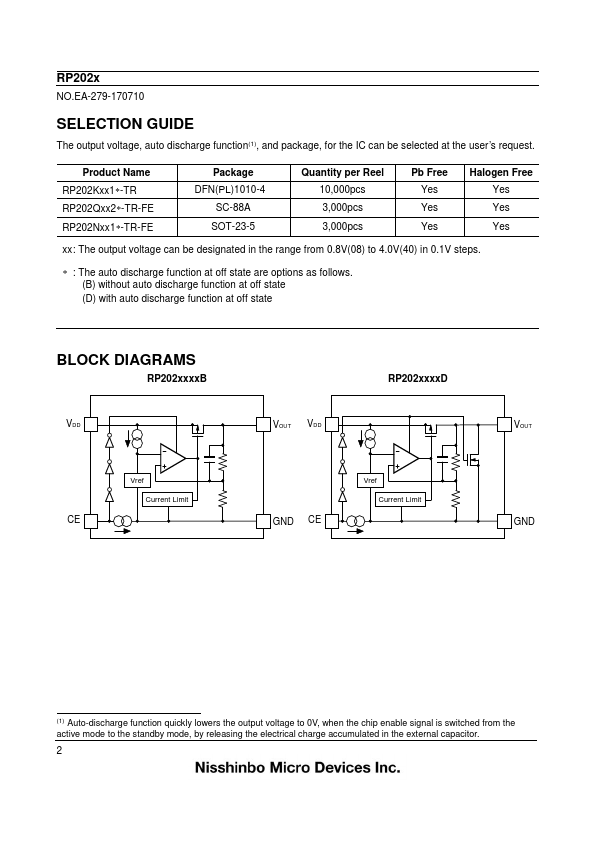

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number RP202N, RP202K
Manufacturer Nisshinbo
File Size 1.70 MB
Description Low Power / Fast Mode Alternative 200mA LDO Regulator
Datasheet download datasheet RP202K-Nisshinbo.pdf
Note This datasheet PDF includes multiple part numbers: RP202N, RP202K.
Please refer to the document for exact specifications by model.

RP202N Product details

Description

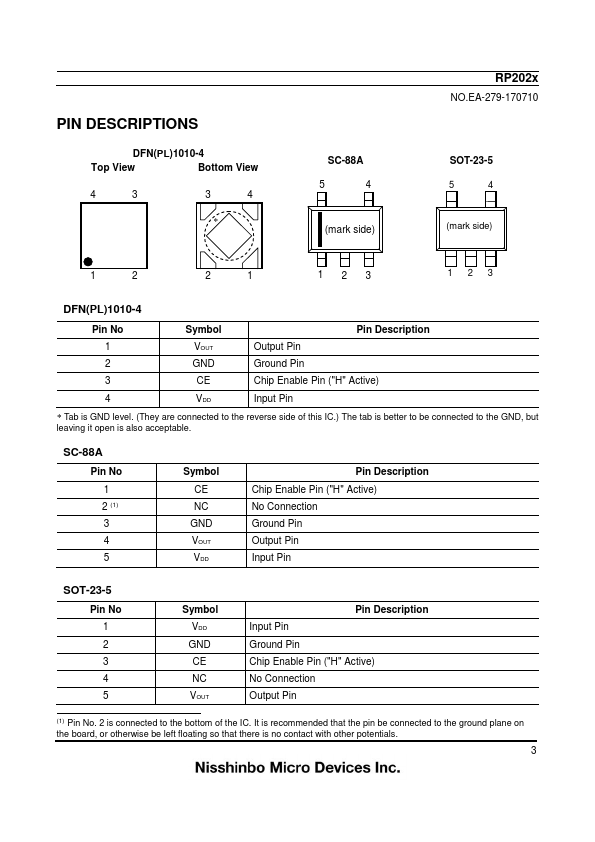

DFN(PL)1010-4 Top View Bottom View 4 3 3 4 ∗ SC-88A 5 4 (mark side) RP202x NO.EA-279-170710 SOT-23-5 5 4 (mark side) 1 2 2 1 12 3 123 DFN(PL)1010-4 Pin No Symbol Pin Description 1 VOUT Output Pin 2 GND Ground Pin 3 CE Chip Enable Pin ("H" Active) 4 VDD Input Pin ∗ Tab is GND level.(They are connected to the reverse side of this IC.) The tab is better to be connected to the GND, but leaving it open is also acceptable.SC-88A Pin No 1 2 (1) 3 4 5 Symbol
