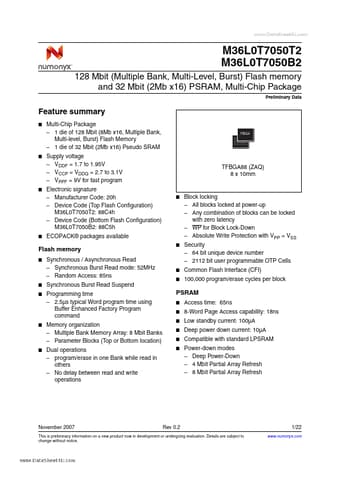

M36L0T7050T2
Key Features
- Multi-Chip Package - 1 die of 128 Mbit (8Mb x16, Multiple Bank, Multi-level, Burst) Flash Memory - 1 die of 32 Mbit (2Mb x16) Pseudo SRAM Supply voltage - VDDF = 1.7 to 1.95V - VCCP = VDDQ = 2.7 to 3.1V - VPPF = 9V for fast program Electronic signature - Manufacturer Code: 20h - Device Code (Top Flash Configuration) M36L0T7050T2: 88C4h - Device Code (Bottom Flash Configuration) M36L0T7050B2: 88C5h ECOPACK® packages available *
- TFBGA88 (ZAQ) 8 x 10mm *
- Block locking - All blocks locked at power-up - Any combination of blocks can be locked with zero latency - WP for Block Lock-Down - Absolute Write Protection with VPP = VSS Security - 64 bit unique device number - 2112 bit user programmable OTP Cells Common Flash Interface (CFI) 100,000 program/erase cycles per block Flash memory
- Synchronous / Asynchronous Read - Synchronous Burst Read mode: 52MHz - Random Access: 85ns Synchronous Burst Read Suspend Programming time - 2.5µs typical Word program time using Buffer Enhanced Factory Program command Memory organization - Multiple Bank Memory Array: 8 Mbit Banks - Parameter Blocks (Top or Bottom location) Dual operations - program/erase in one Bank while read in others - No delay between read and write operations * * *
- PSRAM * * * * *
- Access time: 65ns 8-Word Page Access capability: 18ns Low standby current: 100µA Deep power down current: 10µA Compatible with standard LPSRAM Power-down modes - Deep Power-Down - 4 Mbit Partial Array Refresh - 8 Mbit Partial Array Refresh *
- November 2007 Rev 0.2 1/22 1 This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change without notice. Contents
