NAU8822A

24-bit Stereo Audio Codec

NAU8822A Features

* DAC: 94dB SNR and -84dB THD (“A” weighted)

* ADC: 90dB SNR and -80dB THD (“A” weighted)

* Integrated BTL speaker driver: 1W into 8Ω

* Integrated head-phone driver: 40mW into 16Ω

* Integrated programmable microphone amplifier

* Integrated line input and line output

* On-

NAU8822A General Description

The NAU8822A is a low power, high quality CODEC for portable and general purpose audio applications. In addition to precision 24-bit stereo ADCs and DACs,this device integrates a broad range of additional functions to simplify implementation of complete audio system solutions.The NAU8822A includes d.

NAU8822A Datasheet (2.36 MB)

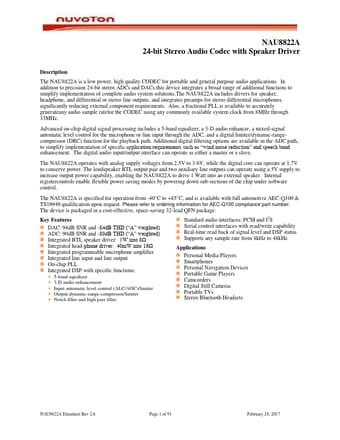

Preview of NAU8822A PDF

Datasheet Details

Part number:

NAU8822A

Manufacturer:

Nuvoton Technology

File Size:

2.36 MB

Description:

24-bit stereo audio codec.
