WPC8765L

(WPC8765L / WPC8769L) Mobile Embedded Controller

WPC8765L Features

* Shared BIOS flash memory

* Support for SPI flash memories

* Flash page programing support

* MC-compliant Consumer Infrared (CIR) Port

* High-accuracy, high-speed ADC

* Up to 88 GPIO ports (including keyboard scanning) with a variety of wake-up events

* 16-bit RISC core,

WPC8765L General Description

The Nuvoton WPC8765L and WPC8769L are highly integrated embedded controllers (EC) with an embedded RISC core and integrated advanced functions. They are targeted for a wide range of portable applications. The WPC8765L/WPC8769L incorporate the CompactRISC® CR16CPlus core (a high-performance 16-bit RI.

WPC8765L Datasheet (207.52 KB)

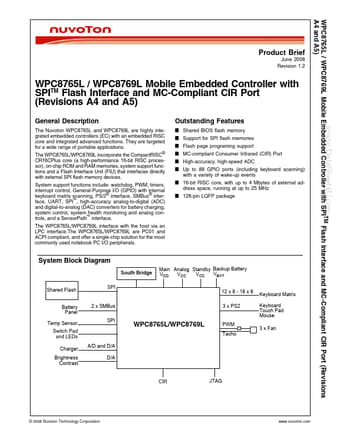

Preview of WPC8765L PDF

Datasheet Details

Part number:

WPC8765L

Manufacturer:

Nuvoton Technology

File Size:

207.52 KB

Description:

(wpc8765l / wpc8769l) mobile embedded controller.
WPC8765L / WPC8769L Mobile Embedded Controller with SPITM Flash Interface and MC-Compliant CIR Port (Revisions A4 and A5) Product Brief June 2008 Rev.
