WPC8768L - Mobile Embedded Controller

Winbond

📥 Download Datasheet

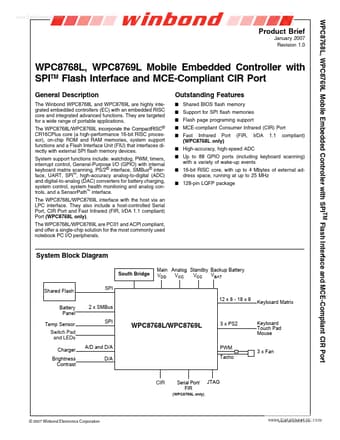

WPC8768L Datasheet Preview — Preview of WPC8768L PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: WPC8768L
Manufacturer: Winbond
File Size: 189.29 KB
Datasheet: WPC8768L_Winbond.pdf
Description: Mobile Embedded Controller

WPC8768L Product details

Description

The Winbond WPC8768L and WPC8769L are highly integrated embedded controllers (EC) with an embedded RISC core and integrated advanced functions.

Features

Shared BIOS flash memory Support for SPI flash memories Flash page programing support MCE-compliant Consumer Infrared (CIR) Port Fast Infrared Port (WPC8768L only) (FIR, IrDA 1.1 compliant) High-accuracy, high-speed ADC Up to 88 GPIO ports (including keyboard scanning) with a variety of wake-up events 16-bit RISC core, with up to 4 Mbytes of external address space, running at up to 25 MHz 128-pin LQFP package System Block Diagram South Bri.
