20N50 - N-Channel MOSFETS

Datasheet Summary

Description

The OGFD 20N50 is produced using advanced planar stripe DMOS technology.

This high density process is especially tailored to minimize on-state resistance.

Features

  • 20.0A,500V,RDS(ON)=0.26 Ω@VGS=10V.
  • Low gate charge (typical 70Nc).
  • Fast switching.
  • 100% avalanche tested.
  • Improved dv/dt capability Ordering Information PART NUMBER.

📥 Download Datasheet

Datasheet preview – 20N50

Datasheet Details

Part number 20N50
Manufacturer OGFD
File Size 1.08 MB
Description N-Channel MOSFETS
Datasheet download datasheet 20N50 Datasheet
Additional preview pages of the 20N50 datasheet.

📁 Similar Datasheet

  • 20N50 - N-CHANNEL POWER MOSFET (UTC)
  • 20N50 - N-Channel Power MOSFET (nELL)
  • 20N50 - FDP20N50 (Fairchild Semiconductor)
  • 20N50-HC - N-CHANNEL POWER MOSFET (UTC)
  • 20N50C1 - HGTH20N50C1 (Intersil Corporation)
  • 20N50E - MTW20N50E (ON Semiconductor)
  • 20N511K - Metal Oxide Varistor (HUAAN)
  • 20N560K - Metal Oxide Varistor (HUAAN)
  • 20N561K - OXIDE (JOYIN)
  • 20N561K - Metal Oxide Varistor (HUAAN)
Other Datasheets by OGFD

    Full PDF Text Transcription

    Click to expand full text

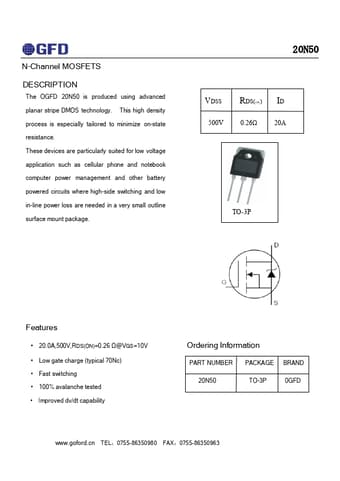

    N-Channel MOSFETS DESCRIPTION The OGFD 20N50 is produced using advanced planar stripe DMOS technology. This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage application such as cellular phone and notebook computer power management and other battery powered circuits where high-side switching and low in-line power loss are needed in a very small outline surface mount package. 20N50 V DSS RDS(ON ) ID 500V 0.26Ω 20A TO-3P Features • 20.0A,500V,RDS(ON)=0.26 Ω@VGS=10V • Low gate charge (typical 70Nc) • Fast switching • 100% avalanche tested • Improved dv/dt capability Ordering Information PART NUMBER PACKAGE BRAND 20N50 TO-3P 0GFD www.goford.
