MR26V51203L Datasheet - OKI electronic componets

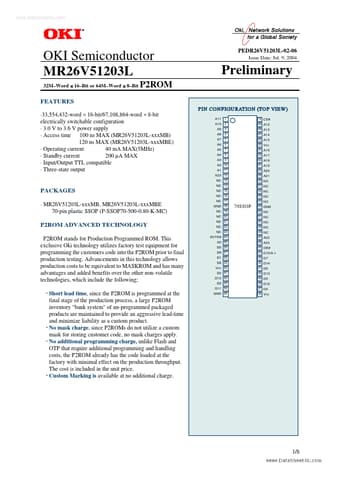

MR26V51203L 32M-Word x 16-Bit or 64M-Word x 8-Bit

Pin name D15 / A *1 A0 to A24 D0 to D14 CE# OE# BYTE# VCC VSS Address inputs Data outputs Chip enable input Output enable input Word / Byte select input Power supply voltage Ground Functions Data output / Address input 2/8 www.DataSheet4U.com PEDR26V51203L-02-06 OKI Semiconductor MR26V5.

MR26V51203L Features

* 33,554,432-word × 16-bit/67,108,864-word × 8-bit electrically switchable configuration

* 3.0 V to 3.6 V power supply

* Access time 100 ns MAX (MR26V51203L-xxxMB) 120 ns MAX (MR26V51203L-xxxMBE)

* Operating current 40 mA MAX(5MHz)

* Standby current 200 µA MAX

* Input/Output T
