MR26V25605J 8M-Word x 32Bit or 64M-Word x 16Bit P2ROM

Pin name D31 / A *1,D30/A-1 A0 to A22 D0 to D29 CE# OE# WORD# VCC VSS Address inputs Data outputs Chip enable input Output enable input Double word - Word select input Power supply voltage Ground Functions Data output / Address input 2/8 FEDR26V25605J-02-03 OKI Semiconductor MR26V25605J .

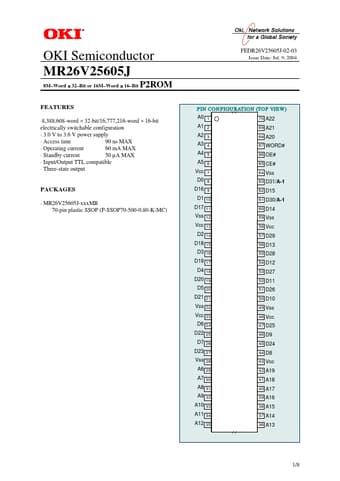

OKI Semiconductor MR26V25605J 8M Word × 32 Bit or 16M Word × 16 Bit FEDR26V25605J-02-03 Issue Date: Jul. 9, 2004 P2ROM PIN CONFIGURATION (TOP VIEW) A0 1 A1 2 A2 3 A3 4 A4 5 A5 6 Vcc 7 D0 8 D16 9 D1 10 D17 11 Vss 12 Vcc 13 D2 14 D18 15 D3 16 D19 17 D4 18 D20 19 D5 20 D21 21 Vss 22 Vcc 23 D6 24 D22 25 D7 26 D23 27 Vss 28 A6 29 A7 30 A8 31 A9 32 A10 33 A11 34 A12 35 70 A22 69 A21 68 A20 67 WORD# 66 OE# 65 CE# 64 Vss 63 D31/A-1 62 D15 61 D30/A-1 60 D14 59 Vss 58 Vcc.

MR26V25605J Features

* 8,388,608-word × 32-bit/16,777,216-word × 16-bit electrically switchable configuration

* 3.0 V to 3.6 V power supply

* Access time 90 ns MAX

* Operating current 60 mA MAX

* Standby current 50 µA MAX

* Input/Output TTL compatible

* Three-state output PACKAGES
