MSM27C3202CZ - One Time PROM

Product Overview

OKI electronic componets

Datasheet Details

Part number	MSM27C3202CZ
Manufacturer	OKI electronic componets
File Size	156.19 KB
Description	One Time PROM
Datasheet	MSM27C3202CZ Datasheet

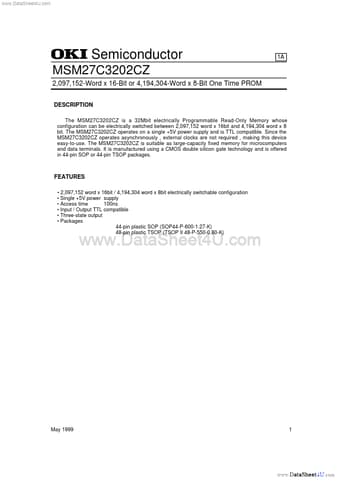

Additional preview pages of the MSM27C3202CZ datasheet.

Product details

Description

1A The MSM27C3202CZ is a 32Mbit electrically Programmable Read-Only Memory whose configuration can be electrically switched between 2,097,152 word x 16bit and 4,194,304 word x 8 bit.The MSM27C3202CZ operates on a single +5V power supply and is TTL compatible.Since the MSM27C3202CZ operates asynchronously , external clocks are not required , making this device easy-to-use.The MSM27C3202CZ is suitable as large-capacity fixed memory for microcomputers and data terminals.It is manufactured usi

Features

2,097,152 word x 16bit / 4,194,304 word x 8bit electrically switchable configuration.
Single +5V power supply.
Access time 100ns.
Input / Output TTL compatible.
Three-state output.
Packages 44-pin plastic SOP (SOP44-P-600-1.27-K) 48-pin plastic TSOP (TSOP II 48-P-550-0.80-K) www. DataSheet4U. com May 1999 1 www. DataSheet4U DataSheet4U. com www. DataSheet4U. com MSM27C3202CZ PIN.
