MSM65352B - 8-Bit Microcontroller

This page provides the datasheet information for the MSM65352B, a member of the MSM65352 8-Bit Microcontroller family.

Description

ThisMSM65352/65352B version: Jan.

1998 Previous version: Nov.

The MSM65352 is a high performance 8-bit microcontroller that employs OKI original CPU core, the nX-8/50.

Features

  • 2.7V to 5.5V.
  • 20°C to +70°C High speed side 0 to 10MHz (@VDD=5V± 10%) 0 to 5MHz (@VDD=2.7V to 5.5V) Low speed side 32.768kHz (@VDD=2.7V to 5.5V).
  • Current consumption (Typ. ): High speed side 5mA (@5MHz, VDD=3V) 20mA (@10MHz, VDD=5V) 1.5mA (@5MHz, VDD=3V, halt mode) Low speed side : 45mA (@32.768kHz, VDD=3V) 4mA (@VDD=3V, stop mode).
  • Minimum instruction execution time : 400ns (@10MHz), 800ns (@5MHz).
  • CPU core : 8-bit CPU core nX-8/50.
  • General memory spac.

📥 Download Datasheet

Datasheet preview – MSM65352B

Datasheet Details

Part number MSM65352B
Manufacturer OKI electronic componets
File Size 152.64 KB
Description 8-Bit Microcontroller
Datasheet download datasheet MSM65352B Datasheet
Additional preview pages of the MSM65352B datasheet.

📁 Similar Datasheet

  • MSM6502B - (MSM6502B / MSM6512) Low-power and Built-in LCD Driver 4-Bit Microcontroller (OKI electronic)
  • MSM6512 - (MSM6502B / MSM6512) Low-power and Built-in LCD Driver 4-Bit Microcontroller (OKI electronic)
  • MSM6524GS-VK - C-MOS 12 CHANNELS 8-BITS D-A CONVERTER (ETC)
  • MSM6051 - Built-in Melody Circuit and LCD Driver 4-Bit Microcontroller (OKI electronic)
  • MSM6052-xx - Tone / Pulse Switchable Repertory Dialer (OKI)
  • MSM60804 - PCMCIA Host Adapter (OKI electronic)
  • MSM60808 - PCI to PCMCIA R2.1/CardBus Controller (OKI electronic)
  • MSM6222B-01 - DOT MATRIX LCD CONTROLLER (OKI)
  • MSM6222B-xx - DOT MATRIX LCD CONTROLLER (OKI)
  • MSM6295 - 4-Channel Mixing ADPCM Voice Syntehsis LSI (OKI Semiconductor)
Other Datasheets by OKI electronic componets
  • MSM65352 - 8-Bit Microcontroller
  • MSM65353A - 8-Bit Microcontroller
  • MSM65354 - 8-Bit Microcontroller
  • MSM65355 - 8-Bit Microcontroller
  • MSM65344A - 8-Bit Microcontroller
  • MSM6542-01 - (MSM6542-01/-02/-03) REAL TIME CLOCK WITH PERIODIC AND ALARM OUTPUT
  • MSM6542-02 - (MSM6542-01/-02/-03) REAL TIME CLOCK WITH PERIODIC AND ALARM OUTPUT
  • MSM6542-03 - (MSM6542-01/-02/-03) REAL TIME CLOCK WITH PERIODIC AND ALARM OUTPUT

Full PDF Text Transcription

Click to expand full text

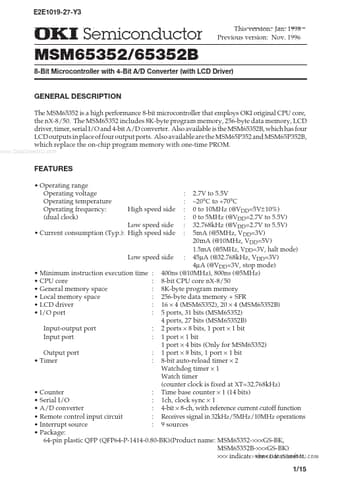

E2E1019-27-Y3 ¡ Semiconductor ¡ Semiconductor MSM65352/65352B GENERAL DESCRIPTION ThisMSM65352/65352B version: Jan. 1998 Previous version: Nov. 1996 8-Bit Microcontroller with 4-Bit A/D Converter (with LCD Driver) The MSM65352 is a high performance 8-bit microcontroller that employs OKI original CPU core, the nX-8/50. The MSM65352 includes 8K-byte program memory, 256-byte data memory, LCD driver, timer, serial I/O and 4-bit A/D converter. Also available is the MSM65352B, which has four LCD outputs in place of four output ports. Also available are the MSM65P352 and MSM65P352B, which replace the on-chip program memory with one-time PROM. www.DataSheet4U.com FEATURES 2.7V to 5.5V –20°C to +70°C High speed side 0 to 10MHz (@VDD=5V± 10%) 0 to 5MHz (@VDD=2.7V to 5.5V) Low speed side 32.
