MSM6882-3 - (MSM6882-3/-5) 2400/1200 bps Single Chip MSK Modem

Name: MSM6882-3
SKU: MSM6882-3-521447

OKI electronic componets

📥 Download Datasheet

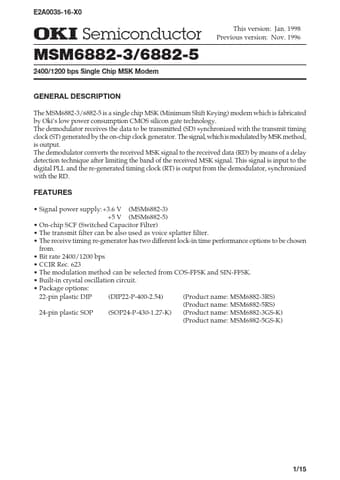

MSM6882-3 Datasheet Preview — Preview of MSM6882-3 PDF

Datasheet Details

Part number	MSM6882-3
Manufacturer	OKI electronic componets
File Size	119.87 KB
Description	(MSM6882-3/-5) 2400/1200 bps Single Chip MSK Modem
Datasheet	MSM6882-3_OKIelectroniccomponets.pdf

MSM6882-3 Product details

Description

The MSM6882-3/6882-5 is a single chip MSK (Minimum Shift Keying) modem which is fabricated by Oki’s low power consumption CMOS silicon gate technology.

Features

Signal power supply:+3.6 V (MSM6882-3) +5 V (MSM6882-5).
On-chip SCF (Switched Capacitor Filter).
The transmit filter can be also used as voice splatter filter.
The receive timing re-generator has two different lock-in time performance options to be chosen from.
Bit rate 2400/1200 bps.
CCIR Rec. 623.
The modulation method can be selected from COS-FFSK and SIN-FFSK.
Built-in crystal oscillation circuit.
Package.
