* Supply voltage : 4.5 to 5.5V LCD driving voltage : 8 to 18V Applicable LCD duty : static and 1/32 to 1/64 Bias voltage can be supplied externally Can be used either as common or segment driver Interface with MSM6255 LCD controller
MSM5260
OKI
140.02 KB
80-dot common/segment driver.
E2B0016-27-Y2 ¡ Semiconductor
¡ Semiconductor MSM5260

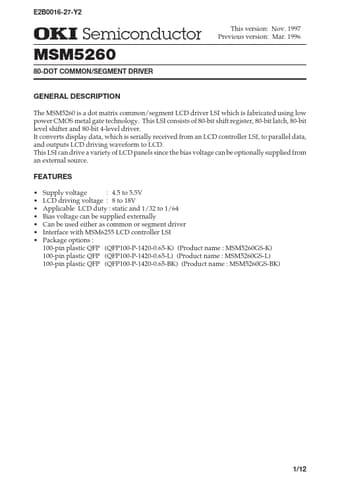

80-DOT COMMON/SEGMENT DRIVER
This version: Nov. 1997 MSM5260 Previous version: Mar. 1996
