14053B - MC14053B

14053B Description

MC14051B, MC14052B, MC14053B Analog Multiplexers/Demultiplexers The MC14051B, MC14052B, and MC14053B analog multiplexers are digitally *contr.

14053B Features

* Triple Diode Protection on Control Inputs
* Switch Function is Break Before Make
* Supply Voltage Range = 3.0 Vdc to 18 Vdc
* Analog Voltage Range (VDD
* VEE) = 3.0 to 18 V Note: VEE must be ≤ VSS
* Linearized Transfer Characteristics
* Low

14053B Applications

* Requiring Unique Site and Control Change Requirements; AEC
* Q100 Qualified and PPAP Capable
* These Devices are Pb
* Free and are RoHS Compliant MAXIMUM RATINGS (Voltages Referenced to VSS) Symbol Parameter Value Unit VDD DC Supply Voltage Range (Referenced to VEE, VSS ≥ V

📥 Download Datasheet

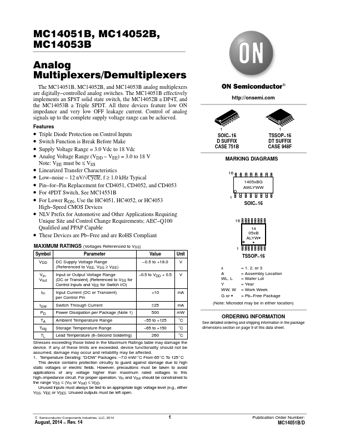

Preview of 14053B PDF
