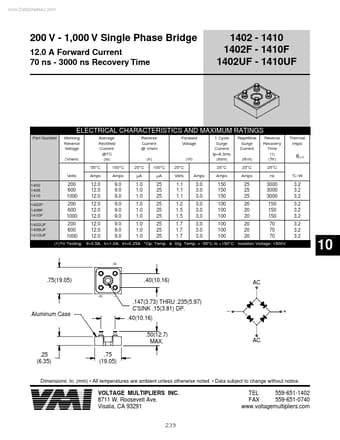

1406F (1402 - 1410) Single Phase Bridge

www.DataSheet4U.com 200 V - 1,000 V Single Phase Bridge 12.0 A Forward Current 70 ns - 3000 ns Recovery Time 1402 - 1410 1402F - 1410F 1402UF - 1410UF ELECTRICAL CHARACTERISTICS AND MAXIMUM RATINGS Part Number Working Reverse Voltage (Vrwm) Average Rectified Current @TC (Io) 55°C Volts 1402 1406 1410 1402F 1406F 1410F 1402UF 1406UF 1410UF Amps 100°C Amps Reverse Current @ Vrwm (Ir) 25°C µA 100°C µA 25°C Volts Amps Forward Voltage 1 Cycle Surge Current tp=8.3ms (Ifsm) 25°C Amps Repetitive Surg.
