1PMT16AT1 Zener Transient Voltage Suppressor

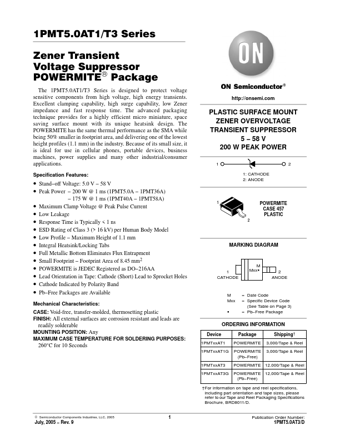

1PMT5.0AT1/T3 Series Zener Transient Voltage Suppressor POWERMITE® Package The 1PMT5.0AT1/T3 Series is designed to protect voltage sensitive components from high voltage, high energy transients. Excellent clamping capability, high surge capability, low Zener impedance and fast response time. The advanced packaging technique provides for a highly efficient micro miniature, space saving surface mount with its unique heatsink design. The POWERMITE has the same thermal performance as the SMA while .

1PMT16AT1 Features

* Stand

* off Voltage: 5.0 V

* 58 V

* Peak Power

* 200 W @ 1 ms (1PMT5.0A

* 1PMT36A)

* 175 W @ 1 ms (1PMT40A

* 1PMT58A)

* Maximum Clamp Voltage @ Peak Pulse Current

* Low Leakag

1PMT16AT1 Datasheet (65.04 KB)
