1SMB10CAT3G Datasheet - ON Semiconductor

1SMB10CAT3G - 600 Watt Peak Power Zener Transient Voltage Suppressors

1SMB10CAT3G Series, SZ1SMB10CAT3G Series 600 Watt Peak Power Zener Transient Voltage Suppressors Bidirectional The SMB series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SMB series is supplied in ON Semiconductor’s exclusive, cost-effective, highly reliable SURMETIC package and is ideally suited for use in communication systems, auto.

1SMB10CAT3G Features

* Working Peak Reverse Voltage Range

* 10 V to 75 V

* Standard Zener Breakdown Voltage Range

* 11.7 V to 91.7 V

* Peak Power

* 600 Watts @ 1 ms

* ESD Rating of Class 3 (> 16 kV) per Human Body Model

* Maximum Clamp Voltage @ Peak Pulse Current

* Low Le

1SMB10CAT3G-ONSemiconductor.pdf

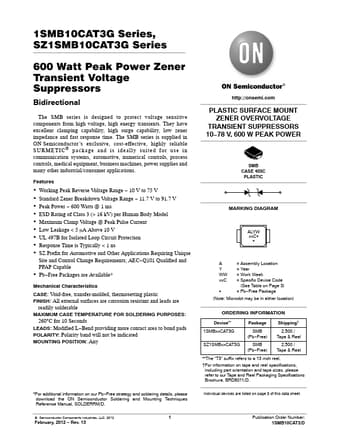

Preview of 1SMB10CAT3G PDF
1SMB10CAT3G Datasheet Preview Page 2 1SMB10CAT3G Datasheet Preview Page 3

Datasheet Details

Part number:

1SMB10CAT3G

Manufacturer:

ON Semiconductor ↗

File Size:

147.41 KB

Description:

600 watt peak power zener transient voltage suppressors.
