1SMB3xAT3 (1SMBxxxAT3) 600 Watt Peak Power Zener Transient Voltage Suppressors

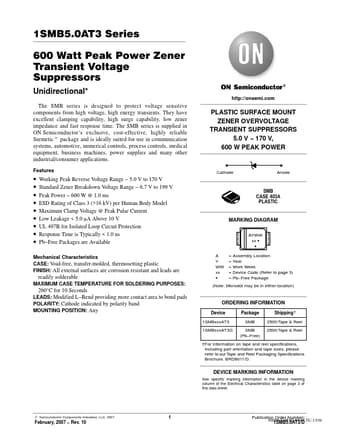

1SMB5.0AT3 Series 600 Watt Peak Power Zener Transient Voltage Suppressors Unidirectional http://onsemi.com The SMB series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SMB series is supplied in ON Semiconductor’s exclusive, cost-effective, highly reliable Surmetict package and is ideally suited for use in communication systems, aut.

1SMB3xAT3 Features

* PLASTIC SURFACE MOUNT ZENER OVERVOLTAGE TRANSIENT SUPPRESSORS 5.0 V

* 170 V, 600 W PEAK POWER Cathode Anode

* Working Peak Reverse Voltage Range

* 5.0 V to 170 V Standard Zener Breakdown Volt
