1SMB4xCAT3 Datasheet - ON Semiconductor

1SMB4xCAT3 (1SMBxxCAT3) Watt Peak Power Zener Transient Voltage Suppressors

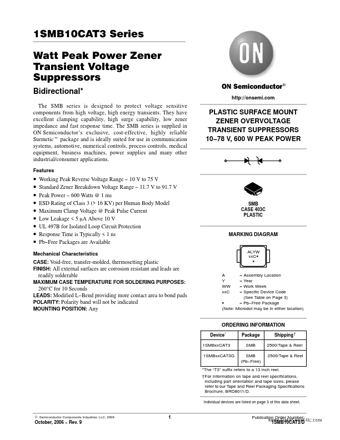

1SMB10CAT3 Series Watt Peak Power Zener Transient Voltage Suppressors Bidirectional http://onsemi.com The SMB series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SMB series is supplied in ON Semiconductor’s exclusive, cost-effective, highly reliable Surmetict package and is ideally suited for use in communication systems, automoti.

1SMB4xCAT3 Features

* PLASTIC SURFACE MOUNT ZENER OVERVOLTAGE TRANSIENT SUPPRESSORS 10

* 78 V, 600 W PEAK POWER

* Working Peak Reverse Voltage Range

* 10 V to 75 V Standard Zener Breakdown Voltage Range

* 11.7

1SMB4xCAT3 Datasheet (70.23 KB)
