1SMF5920B - 2.5 Watt Zener Diode

Features

  • Zener Breakdown Voltage: 6.2 V.
  • Low Leakage < 5 mA.
  • ESD Rating of Class 3 (> 16 kV) per Human Body Model.
  • Small Footprint.
  • Footprint Area of 8.45 mm2.
  • Low Profile.
  • Maximum Height of 1.0 mm.
  • Supplied in 8 mm Tape and Reel.
  • 3,000 Units per Reel.
  • Cathode Indicated by Polarity Band.
  • Lead Orientation in Tape: Cathode Lead to Sprocket Holes.
  • These Devices are Pb.
  • Free, Halogen Free/BFR F.

📥 Download Datasheet

Datasheet preview – 1SMF5920B

Datasheet Details

Part number 1SMF5920B
Manufacturer ON Semiconductor
File Size 53.14 KB
Description 2.5 Watt Zener Diode
Datasheet download datasheet 1SMF5920B Datasheet

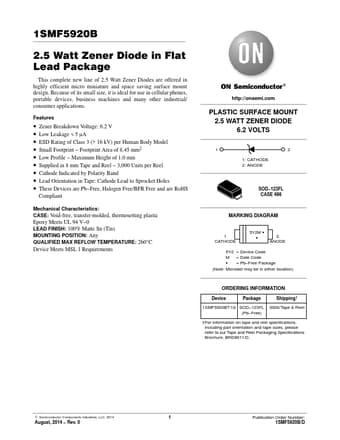

Additional preview pages of the 1SMF5920B datasheet.
