2N4029 Datasheet, Transistor, ON Semiconductor

2N4029 Features

  • Transistor
  • MIL
  • PRF
  • 19500/512 Qualified
  • Available as JAN, JANTX, and JANTXV MAXIMUM RATINGS Rating Symbol Value Unit Collector
  • Emitter Voltage Coll

PDF File Details

Part number:

2N4029

Manufacturer:

ON Semiconductor ↗

File Size:

73.36kb

Download:

📄 Datasheet

Description:

Small signal switching transistor.

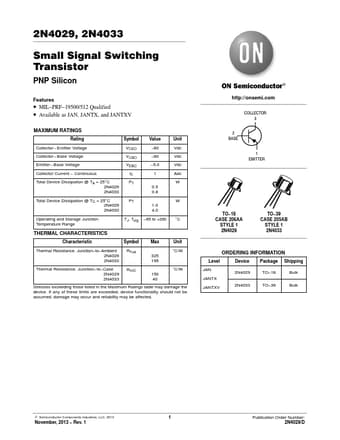

Datasheet Preview: 2N4029 📥 Download PDF (73.36kb)
Page 2 of 2N4029 Page 3 of 2N4029

TAGS

2N4029
Small
Signal
Switching
Transistor
ON Semiconductor

📁 Related Datasheet

2N4026 - Bipolar PNP Device (Seme LAB)
2N4026 Dimensions in mm (inches). 5.84 (0.230) 5.31 (0.209) 4.95 (0.195) 4.52 (0.178) Bipolar PNP Device in a Hermetically sealed TO18 Metal Package.

2N4026 - GENERAL PURPOSE TRANSISTOR (Motorola)
MAXIMUM RATINGS Rating 2N4026/28 2N4027/29 Symbol 2N4030/32 2N4031/33 Unit Collector-Emitter Voltage) 1) VCEO 60 80 Vdc Collector-Base Voltage.

2N4027 - Bipolar PNP Device (Seme LAB)
2N4027 Dimensions in mm (inches). 5.84 (0.230) 5.31 (0.209) 4.95 (0.195) 4.52 (0.178) Bipolar PNP Device in a Hermetically sealed TO18 Metal Package.

2N4027 - GENERAL PURPOSE TRANSISTOR (Motorola)
MAXIMUM RATINGS Rating 2N4026/28 2N4027/29 Symbol 2N4030/32 2N4031/33 Unit Collector-Emitter Voltage) 1) VCEO 60 80 Vdc Collector-Base Voltage.

2N4028 - Bipolar PNP Device (Seme LAB)
2N4028 Dimensions in mm (inches). 5.84 (0.230) 5.31 (0.209) 4.95 (0.195) 4.52 (0.178) Bipolar PNP Device in a Hermetically sealed TO18 Metal Package.

2N4028 - GENERAL PURPOSE TRANSISTOR (Motorola)
MAXIMUM RATINGS Rating 2N4026/28 2N4027/29 Symbol 2N4030/32 2N4031/33 Unit Collector-Emitter Voltage) 1) VCEO 60 80 Vdc Collector-Base Voltage.

2N4029 - Bipolar PNP Device (Seme LAB)
2N4029 Dimensions in mm (inches). 5.84 (0.230) 5.31 (0.209) 4.95 (0.195) 4.52 (0.178) Bipolar PNP Device in a Hermetically sealed TO18 Metal Package.

2N4029 - PNP Transistor (Semicoa Semiconductor)
Data Sheet No. 2N4029 Type 2N4029 Geometry 6700 Polarity PNP Qual Level: JAN - JANTXV Features: • • • • General-purpose transistor for high speed swi.

2N4029 - PNP SILICON TRANSISTOR (Micro Electronics)
.

2N4029 - PNP SILICON SWITCHING TRANSISTOR (Microsemi Corporation)
TECHNICAL DATA PNP SILICON SWITCHING TRANSISTOR Qualified per MIL-PRF-19500/512 Devices 2N4029 2N4033 Qualified Level JAN JANTX JANTXV MAXIMUM RATING.
