2N4000 - Bipolar NPN Device

📥 Download Datasheet

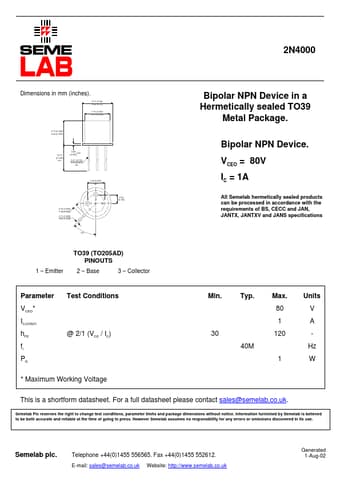

Datasheet preview – 2N4000

Datasheet Details

Part number 2N4000
Manufacturer Seme LAB
File Size 11.10 KB
Description Bipolar NPN Device
Datasheet download datasheet 2N4000 Datasheet
Additional preview pages of the 2N4000 datasheet.

📁 Similar Datasheet

  • 2N4002 - PNP Epitaxial Silicon Transistor (SEMTECH)
  • 2N4003 - PNP Epitaxial Silicon Transistor (SEMTECH)
  • 2N4003K - N-Channel Enhancement Mode Power MOSFET (Weitron Technology)
  • 2N4003NLT1 - Small Signal MOSFET (WILLAS)
  • 2N4006 - (2N4006 - 2N4011) Silicon Epitaxial Junction PNP Switching Transistor (Crystalonics)
  • 2N4007 - (2N4006 - 2N4011) Silicon Epitaxial Junction PNP Switching Transistor (Crystalonics)
  • 2N4008 - (2N4006 - 2N4011) Silicon Epitaxial Junction PNP Switching Transistor (Crystalonics)
  • 2N4009 - (2N4006 - 2N4011) Silicon Epitaxial Junction PNP Switching Transistor (Crystalonics)
  • 2N40 - N-Channel MOSFET (ART CHIP)
  • 2N40 - N-Channel Power MOSFET (Unisonic Technologies)
Other Datasheets by Seme LAB

Full PDF Text Transcription

Click to expand full text
2N4000 Dimensions in mm (inches). 8.51 (0.34) 9.40 (0.37) 7.75 (0.305) 8.51 (0.335) Bipolar NPN Device in a Hermetically sealed TO39 Metal Package. Bipolar NPN Device. 6.10 (0.240) 6.60 (0.260) 12.70 (0.500) min. 0.89 max. (0.035) 0.41 (0.016) 0.53 (0.021) dia. VCEO = 80V 5.08 (0.200) typ. IC = 1A 2.54 (0.100) 2 1 0.74 (0.029) 1.14 (0.045) 0.71 (0.028) 0.86 (0.034) 3 All Semelab hermetically sealed products can be processed in accordance with the requirements of BS, CECC and JAN, JANTX, JANTXV and JANS specifications 45° TO39 (TO205AD) PINOUTS 1 – Emitter 2 – Base 3 – Collector Parameter VCEO* IC(CONT) hFE ft PD Test Conditions Min. Typ. Max. 80 1 Units V A Hz @ 2/1 (VCE / IC) 30 40M 120 1 W * Maximum Working Voltage This is a shortform datasheet.
