2N4029 Datasheet - Seme LAB

2N4029 Bipolar PNP Device

2N4029 Dimensions in mm (inches). 5.84 (0.230) 5.31 (0.209) 4.95 (0.195) 4.52 (0.178) Bipolar PNP Device in a Hermetically sealed TO18 Metal Package. 0.48 (0.019) 0.41 (0.016) dia. 2.54 (0.100) Nom. 31 2 1 Emitter TO18 (TO206AA) PINOUTS 2 Base 3 Collector Bipolar PNP Device. VCEO = 80V IC = 1A All Semelab hermetically sealed products can be processed in accordance with the requirements of BS, CECC and JAN, JANTX, JANTXV and JANS specifications Parameter VC.

2N4029 Datasheet (9.37 KB)

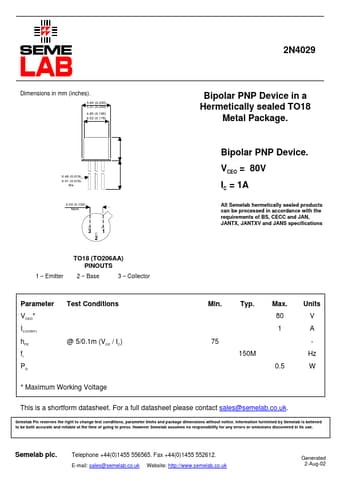

2N4029 Datasheet Preview — Preview of 2N4029 PDF

Datasheet Details

Part number:

2N4029

Manufacturer:

Seme LAB

File Size:

9.37 KB

Description:

Bipolar pnp device.
