2N6031 Datasheet - ON Semiconductor

2N6031 POWER TRANSISTORS

ON Semiconductort NPN PNP High-Voltage - High Power Transistors . . . designed for use in high power audio amplifier applications and high voltage switching regulator circuits. 2N5631 2N6031 16 AMPERE POWER TRANSISTORS COMPLEMENTARY SILICON 140 VOLTS 200 WATTS High Collector Emitter Sustaining Voltage VCEO(sus) = 140 Vdc High DC Current Gain @ IC = 8.0 Adc hFE = 15 (Min) Low Collector Emitter Saturation Voltage VCE(sat) = 1.0.

2N6031_ONSemiconductor.pdf

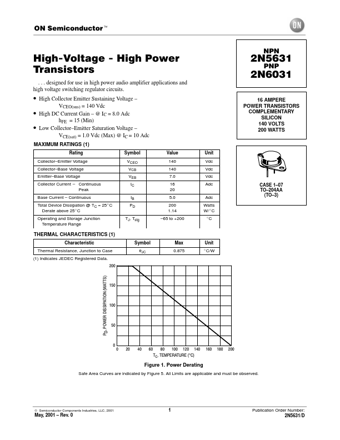

Preview of 2N6031 PDF
2N6031 Datasheet Preview Page 2 2N6031 Datasheet Preview Page 3

Datasheet Details

Part number:

2N6031

Manufacturer:

ON Semiconductor ↗

File Size:

118.79 KB

Description:

Power transistors.
