2N6033 - Bipolar NPN Device

📥 Download Datasheet

Datasheet preview – 2N6033

Datasheet Details

Part number 2N6033
Manufacturer Seme LAB
File Size 12.16 KB
Description Bipolar NPN Device
Datasheet download datasheet 2N6033 Datasheet
Additional preview pages of the 2N6033 datasheet.

📁 Similar Datasheet

  • 2N6033 - NPN High Power Silicon Transistor (VPT)
  • 2N6033 - Silicon NPN Power Transistor (INCHANGE)
  • 2N6033 - NPN POWER SILICON TRANSISTOR (Microsemi)
  • 2N6030 - COMPLEMENTARY SILICON POWER TRANSISTORS (Central Semiconductor Corp)
  • 2N6030 - (2N6029 / 2N6030) Silicon PNP Power Transistor (SavantIC)
  • 2N6030 - Power Transistor (Motorola)
  • 2N6031 - POWER TRANSISTORS (ON Semiconductor)
  • 2N6031 - Silicon Power Transistor (SavantIC)
  • 2N6031 - PNP SILICON POWER TRANSISTOR (Central Semiconductor)
  • 2N6031 - Power Transistor (Motorola)
Other Datasheets by Seme LAB
  • 2N6032 - Bipolar NPN Device
  • 2N6049 - Bipolar PNP Device
  • 2N6050 - Bipolar PNP Device
  • 2N6053 - Bipolar PNP Device
  • 2N6055 - Bipolar NPN Device
  • 2N6057 - Bipolar NPN Device
  • 2N6077 - Bipolar NPN Device
  • 2N6078 - NPN MULTI - EPITAXIAL POWER TRANSISTOR

Full PDF Text Transcription

Click to expand full text

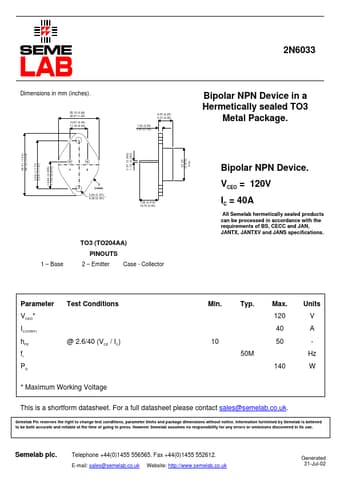

2N6033 Dimensions in mm (inches). 25.15 (0.99) 26.67 (1.05) 10.67 (0.42) 11.18 (0.44) 1.52 (0.06) 3.43 (0.135) 6.35 (0.25) 9.15 (0.36) Bipolar NPN Device in a Hermetically sealed TO3 Metal Package. 38.61 (1.52) 39.12 (1.54) 0.97 (0.060) 1.10 (0.043) 29.9 (1.177) 30.4 (1.197) 22.23 (0.875) max. 16.64 (0.655) 17.15 (0.675) 1 2 Bipolar NPN Device. VCEO = 120V 3 (case) 3.84 (0.151) 4.09 (0.161) 7.92 (0.312) 12.70 (0.50) IC = 40A All Semelab hermetically sealed products can be processed in accordance with the requirements of BS, CECC and JAN, JANTX, JANTXV and JANS specifications. TO3 (TO204AA) PINOUTS 1 – Base 2 – Emitter Case - Collector Parameter VCEO* IC(CONT) hFE ft PD Test Conditions Min. Typ. Max. 120 40 Units V A Hz @ 2.
