2N6055 Datasheet (Seme LAB) - Bipolar NPN Device

2N6055, Bipolar NPN Device

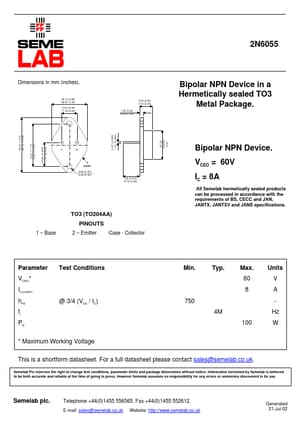

2N6055 Dimensions in mm (inches).

25.15 (0.99) 26.67 (1.05) 10.67 (0.42) 11.18 (0.44) 1.52 (0.06) 3.43 (0.135) 6.35 (0.25) 9.15 (0.36) Bipolar NPN Device in a Hermetically sealed TO3 Metal Package.

38.61 (1.52) 39.12 (1.54) 0.97 (0.060) 1.10 (0.043) 29.9 (1.177) 30.4 (1.197) 22.23 (0.875) max.

16.64 (0.655) 17.15 (0.675) 1 2 Bipolar NPN Device.

VCEO = 60V 3 (case) 3.84 (0.151) 4.09 (0.161) 7.92 (0.312) 12.70 (0.50) IC = 8A All Semelab hermetically sealed products can be processed i
