2SK4198FS - N-Channel Power MOSFET

ON Semiconductor

📥 Download Datasheet

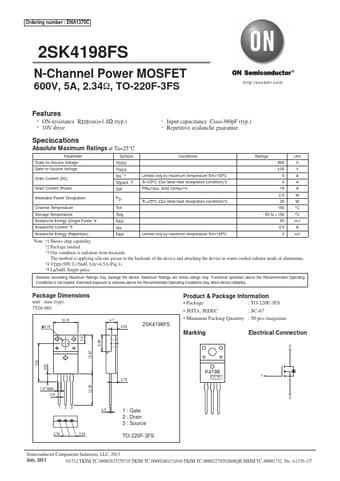

2SK4198FS Datasheet Preview — Preview of 2SK4198FS PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SK4198FS
Manufacturer	ON Semiconductor ↗
File Size	181.96 KB
Description	N-Channel Power MOSFET
Datasheet	2SK4198FS-ONSemiconductor.pdf

2SK4198FS Product details

Features

ON-resistance RDS(on)=1.8Ω (typ. ).
10V drive.
Input capacitance Ciss=360pF (typ. ).
Repetitive avalanche guarantee Speciﬁcations Absolute Maximum Ratings at Ta=25°C Parameter Symbol Conditions Ratings Unit Drain-to-Source Voltage Gate-to-Source Voltage Drain Current (DC) Drain Current (Pulse) VDSS VGSS IDc.
1 IDpack.
2 IDP Limited only by maximum temperature Tch=150°C Tc=25°C (Our ideal heat dissipation condition).
3 PW≤10μs, duty cycle≤1%.
