74LCX125

Low Voltage Quad Buffer

74LCX125 Features

* 5 V Tolerant Inputs and Outputs

* 2.3 V

* 3.6 V VCC Specifications Provided

* 6.0 ns tPD max. (VCC = 3.3 V), 10 mA ICC max.

* Power Down High Impedance Inputs and Outputs

* Supports Live Insertion/Withdrawal

* ±24 mA Output Drive (VCC = 3.

74LCX125 General Description

The LCX125 contains four independent non

*inverting buffers with 3

*STATE outputs. The inputs tolerate Voltages up to 7 V Allowing the interface of 5 V Systems to 3 V Systems. The 74LCX125 is fabricated with an advanced CMOS technology to achieve high Speed operation while Maintaining .

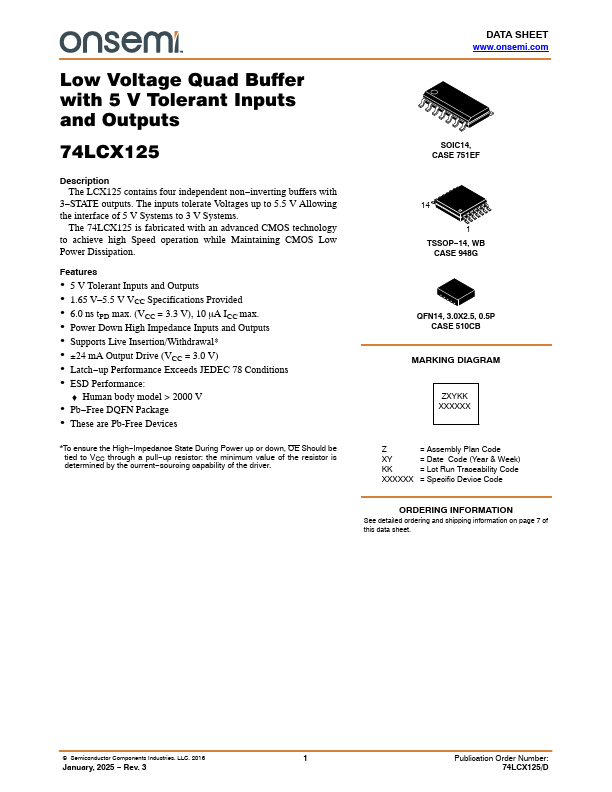

74LCX125 Datasheet (422.83 KB)

Preview of 74LCX125 PDF

Datasheet Details

Part number:

74LCX125

Manufacturer:

ON Semiconductor ↗

File Size:

422.83 KB

Description:

Low voltage quad buffer.

📁 Related Datasheet

74LCX125 - Low Voltage Quad Buffer (Fairchild Semiconductor)
74LCX125 Low Voltage Quad Buffer with 5V Tolerant Inputs and Outputs March 1995 Revised April 1999 74LCX125 Low Voltage Quad Buffer with 5V Tolerant.

74LCX125 - Low-voltage CMOS quad bus buffer (STMicroelectronics)
74LCX125 Low-voltage CMOS quad bus buffer (3-state) with 5 V tolerant inputs and outputs Datasheet −production data Features ■ 5 V tolerant inputs a.

74LCX125FT - Low-Voltage Quad Bus Buffer (Toshiba)
CMOS Digital Integrated Circuits Silicon Monolithic 74LCX125FT 74LCX125FT 1. Functional Description • Low-Voltage Quad Bus Buffer with 5-V Tolerant .

74LCX126 - Low Voltage Quad Buffer (Fairchild Semiconductor)
74LCX126 Low Voltage Quad Buffer with 5V Tolerant Inputs and Outputs September 2000 Revised July 2003 74LCX126 Low Voltage Quad Buffer with 5V Toler.

74LCX10 - Low Voltage Triple 3-Input NAND Gate (Fairchild Semiconductor)
74LCX10 Low Voltage Triple 3-Input NAND Gate with 5V Tolerant Inputs February 2001 Revised February 2001 74LCX10 Low Voltage Triple 3-Input NAND Gat.

74LCX11 - Low Voltage Triple 3-Input AND Gate (Fairchild Semiconductor)
74LCX11 Low Voltage Triple 3-Input AND Gate with 5V Tolerant Inputs April 1995 Revised March 1999 74LCX11 Low Voltage Triple 3-Input AND Gate with 5.

74LCX112 - Low Voltage Dual J-K Negative Edge-Triggered Flip-Flop (Fairchild Semiconductor)
74LCX112 Low Voltage Dual J-K Negative Edge-Triggered Flip-Flop with 5V Tolerant Inputs June 1998 Revised February 2001 74LCX112 Low Voltage Dual J-.

74LCX138 - Low Voltage 1-of-8 Decoder/Demultiplexer (Fairchild Semiconductor)
74LCX138 Low Voltage 1-of-8 Decoder/Demultiplexer with 5V Tolerant Inputs March 1995 Revised December 2013 74LCX138 Low Voltage 1-of-8 Decoder/Demul.

TAGS

74LCX125 Low Voltage Quad Buffer ON Semiconductor

Image Gallery

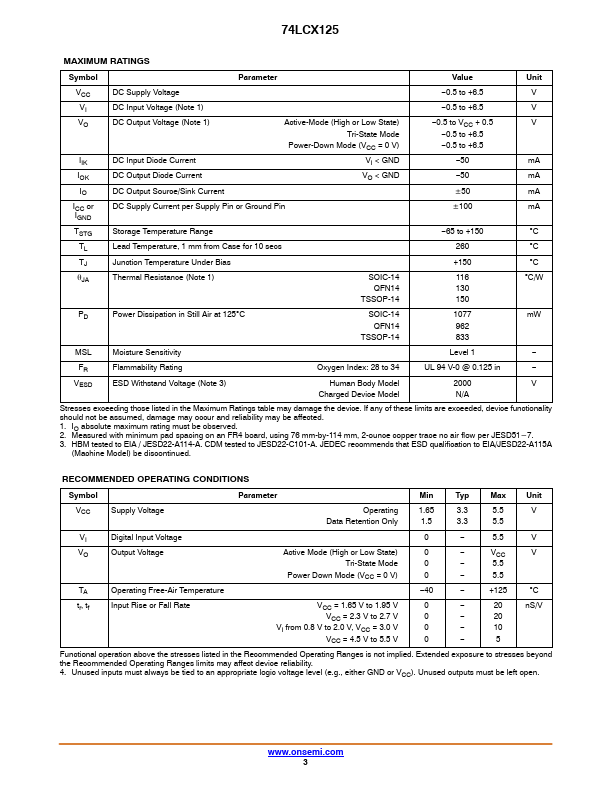

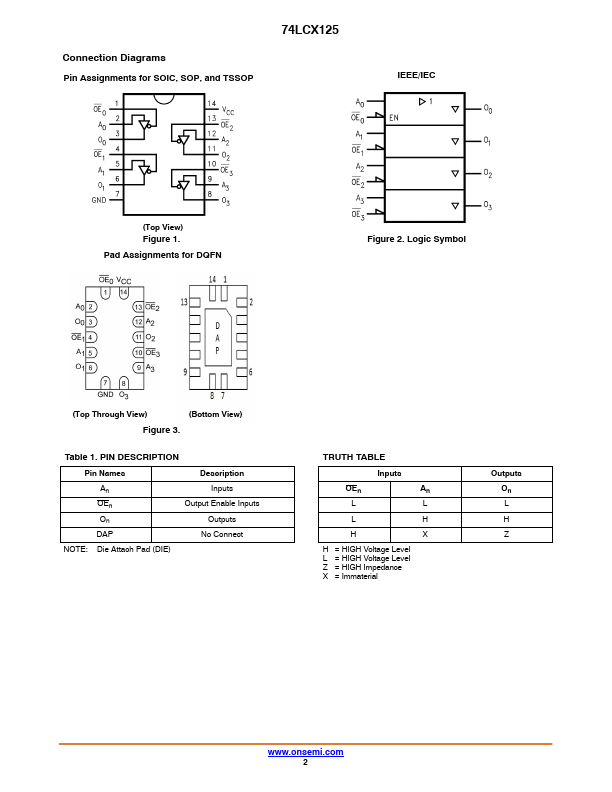

74LCX125 Datasheet Preview Page 2 74LCX125 Datasheet Preview Page 3
