8M05A

500mA Positive Voltage Regulator

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part onsemi MC78M05ABDTG IC REG LINEAR 5V 500MA DPAK DigiKey 1341 5025 units
$0.23

8M05A Datasheet (307.05 KB)

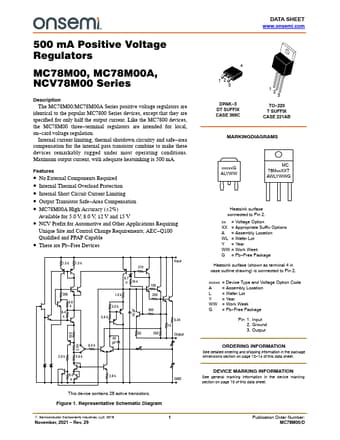

Preview of 8M05A PDF

Datasheet Details

Part number:

8M05A

Manufacturer:

ON Semiconductor ↗

File Size:

307.05 KB

Description:

500ma positive voltage regulator.

8M05A Features

* No External Components Required

* Internal Thermal Overload Protection

* Internal Short Circuit Current Limiting

* Output Transistor Safe

* Area Compensation

* MC78M00A High Accuracy (±2%) Available for 5.0 V, 8.0 V, 12 V and 15 V

* NCV Prefix

8M05A General Description

The MC78M00/MC78M00A Series positive voltage regulators are identical to the popular MC7800 Series devices, except that they are specified for only half the output current. Like the MC7800 devices, the MC78M00 three

*terminal regulators are intended for local, on

*card voltage regulati.
