AMIS-30624 Datasheet - ON Semiconductor

AMIS-30624 Micro-Stepping Motor Driver

AMIS-30624, NCV70624 I2C Micro-stepping Motor Driver INTRODUCTION The AMIS 30624/NCV70624 is a single chip micro stepping motor driver with a position controller and control/diagnostic interface. It is ready to build intelligent peripheral systems where up to 32 drivers can be connected to one I2C master. This significantly reduces system complexity. The chip receives positioning instructions through the bus and subsequently drives the stator coils so the two ph.

AMIS-30624_ONSemiconductor.pdf

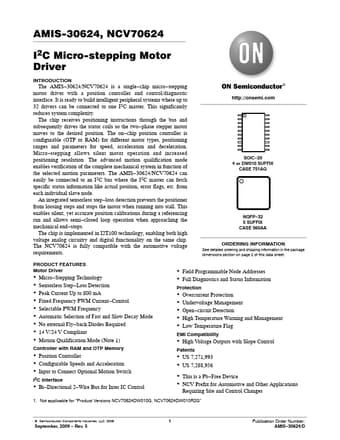

Preview of AMIS-30624 PDF
AMIS-30624 Datasheet Preview Page 2 AMIS-30624 Datasheet Preview Page 3

Datasheet Details

Part number:

AMIS-30624

Manufacturer:

ON Semiconductor ↗

File Size:

581.27 KB

Description:

Micro-stepping motor driver.
