AMIS-30621

LIN Microstepping Motordriver

AMIS-30621 Features

* Motordriver LIN Interface

* Microstepping (1/2, 1/4, 1/8, 1/16)

* Low resonance & noise

* High resolution

* Programmable peak current up to 800mA

* 20kHz PWM current-control

* Automatic selection of fast & slow decay mode

* Internal fly-back F

AMIS-30621 General Description

The AMIS-30621 is a member of a stepper motordriver family with position controller and control/diagnostics interface integrated in one single chip. The family consists of two products:

* AMIS-30621 with LIN interface, ready to build dedicated mechatronics solutions connected remotely with a.

AMIS-30621 Datasheet (2.70 MB)

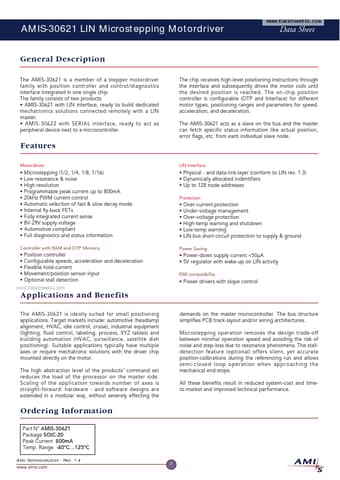

Preview of AMIS-30621 PDF

Datasheet Details

Part number:

AMIS-30621

Manufacturer:

AMI SEMICONDUCTOR

File Size:

2.70 MB

Description:

Lin microstepping motordriver.
