AMIS-30512

Micro-Stepping Motor Driver

AMIS-30512 Features

* http://onsemi.com PIN ASSIGNMENT DO VDD GND DI CLK NXT DIR ERR SLA CPN CPP VCP TSTO POR/WD VBB MOTXP GND MOTXN MOTYN GND MOTYP VBB CS CLR AMIS30512 DAC

* On

* chip Current Translator

* SPI Interface

* Speed and Load Angle Output

* Seven Step Modes from Full

AMIS-30512 General Description

. . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Typical Application Schematic . . . . . . . . . . . . . . . . . . . . . . . 9 Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.

AMIS-30512 Datasheet (470.41 KB)

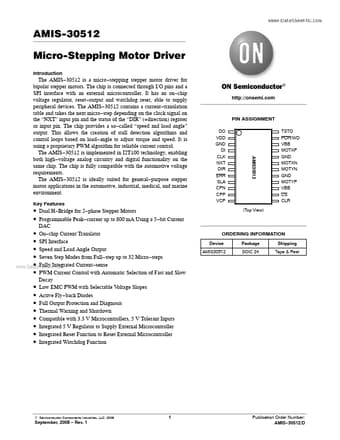

Preview of AMIS-30512 PDF

Datasheet Details

Part number:

AMIS-30512

Manufacturer:

ON Semiconductor ↗

File Size:

470.41 KB

Description:

Micro-stepping motor driver.
AMIS-30512 Micro-Stepping Motor Driver Introduction The AMIS

*30512 is a micro

*stepping stepper motor driver for bipolar stepper motor.
