AMIS-30523 Datasheet - ON Semiconductor

AMIS-30523 CAN Micro-Stepping Motor Driver

AMIS-30523 Product Preview CAN Micro-Stepping Motor Driver Introduction The AMIS 30523 is a micro stepping stepper motor driver for bipolar stepper motors with an embedded CAN transceiver. The motor driver is connected through I/O pins and a SPI interface http://onsemi.com with an external microcontroller. It has an on chip voltage regulator, reset output and watchdog reset, able to supply peripheral devices. It contains a current translation table.

AMIS-30523-ONSemiconductor.pdf

Preview of AMIS-30523 PDF

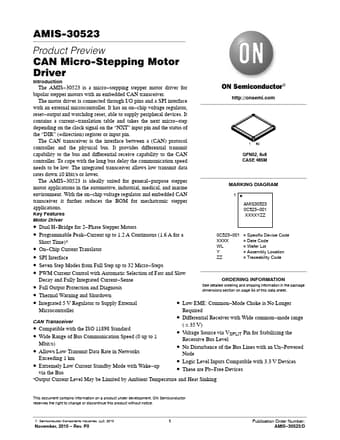

AMIS-30523 Datasheet Preview Page 2 AMIS-30523 Datasheet Preview Page 3

Datasheet Details

Part number:

AMIS-30523

Manufacturer:

ON Semiconductor ↗

File Size:

432.92 KB

Description:

Can micro-stepping motor driver.
