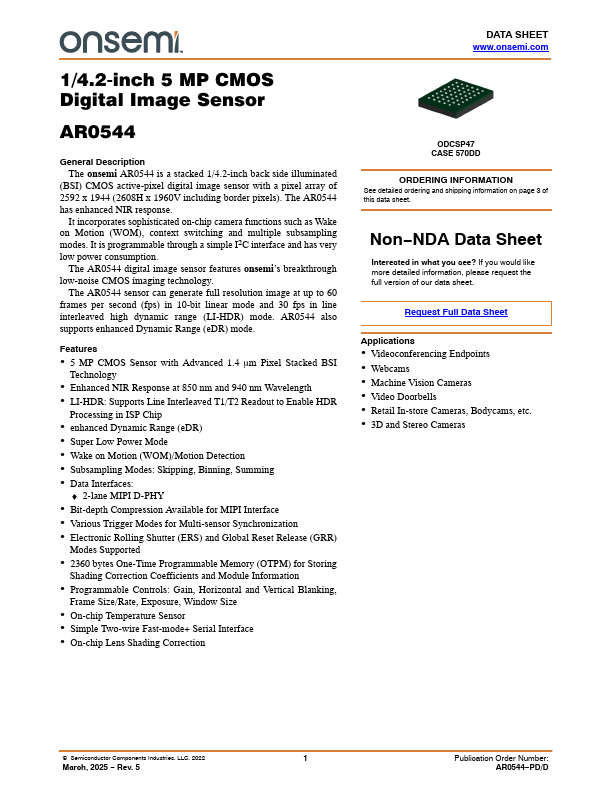

AR0544 - 1/4.2-inch 5-MP CMOS Digital Image Sensor

ON Semiconductor

AR0544 Datasheet Preview — Preview of AR0544 PDF

Datasheet Details

Part number	AR0544
Manufacturer	ON Semiconductor ↗
File Size	199.79 KB
Description	1/4.2-inch 5-MP CMOS Digital Image Sensor
Datasheet	AR0544-ONSemiconductor.pdf

AR0544 Product details

Description

The onsemi AR0544 is a stacked 1/4.2-inch back side illuminated (BSI) CMOS active-pixel digital image sensor with a pixel array of 2592 x 1944 (2608H x 1960V including border pixels).The AR0544 has enhanced NIR response.It incorporates sophisticated on-chip camera functions such as Wake on Motion (WOM), context switching and multiple subsampling modes.It is programmable through a simple I2C interface and has very low power consumption.The AR0544 digital image sensor

Features

onsemi’s breakthrough low-noise CMOS imaging technology. The AR0544 sensor can generate full resolution image at up to 60 frames per second (fps) in 10-bit linear mode and 30 fps in line interleaved high dynamic range (LI-HDR) mode. AR0544 also supports enhanced Dynamic Range (eDR) mode. Features.
5 MP CMOS Sensor with Advanced 1.4 mm Pixel Stacked BSI Technology.
Enhanced NIR Response at 850 nm and 940 nm Wavelength.
LI-HDR: Supports Line Interleaved T1/T2 Readout to Enable HDR P.
