BCX70GLT1 - General Purpose Transistors

BCX70GLT1 General Purpose Transistors NPN Silicon MAXIMUM RATINGS Rating Symbol Value Unit Collector Emitter Voltage Collector Base Voltage Emitter Base Voltage Collector Current Continuous THERMAL CHARACTERISTICS VCEO VCBO VEBO IC 45 Vdc 45 Vdc 5.0 Vdc 200 mAdc Characteristic Total Device Dissipation FR 5 Board(1) TA = 25°C Derate above 25°C Symbol PD Max 225 1.8 Unit mW mW/°C Thermal Resistance, Junction to Ambient RqJA 556 °C/W To

BCX70GLT1 Features

* emperatures, thermal limitations will reduce the power that can be handled to values less than the limitations imposed by second breakdown. 40 IC, COLLECTOR CURRENT (mA) http://onsemi.com 7 BCX70GLT1 INFORMATION FOR USING THE SOT

* 23 SURFACE MOUNT PACKAGE MINIMUM RECOMMENDED FOOTPRINT FO

BCX70GLT1-ONSemiconductor.pdf

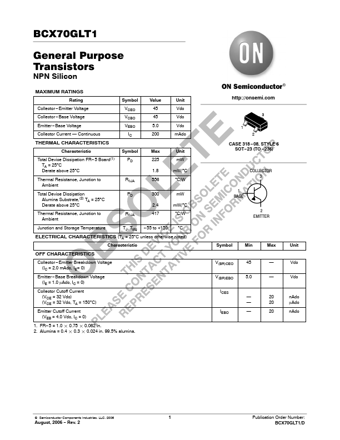

BCX70GLT1 Datasheet Preview — Preview of BCX70GLT1 PDF

Datasheet Details

Part number:

BCX70GLT1

Manufacturer:

ON Semiconductor ↗

File Size:

251.94 KB

Description:

General purpose transistors.
