BSR16 PNP Epitaxial Silicon Transistor

ON Semiconductor

Description

PNP Epitaxial Silicon Transistor BSR16 PNP General Purpose Amplifier * This Device Designed for Use as General Purpose Amplifier and Switches.

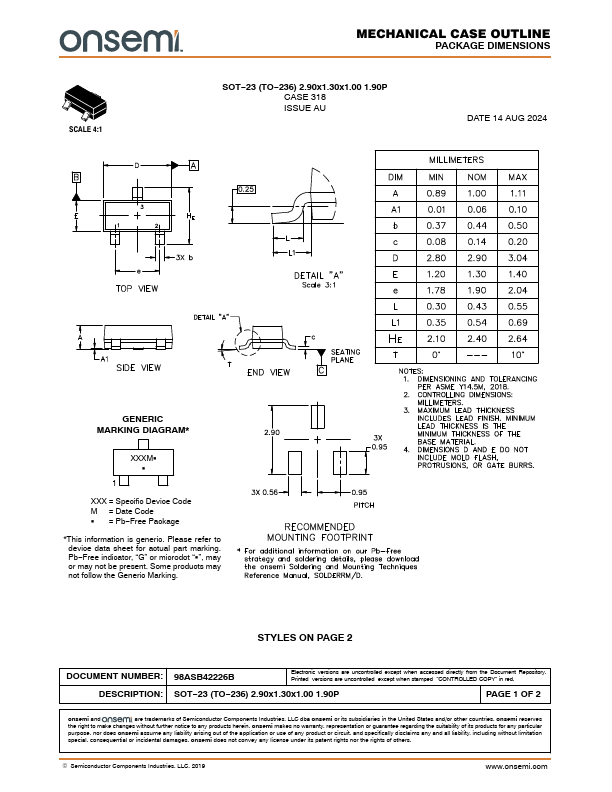

98ASB42226B Electronic versions are uncontrolled except when accessed directly from the Document Repository.

📥 Download Datasheet

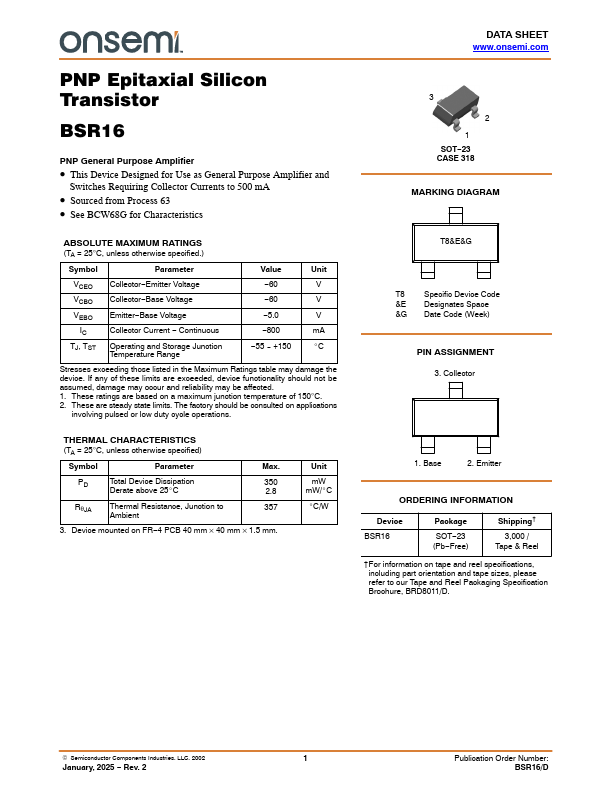

BSR16 Datasheet Preview — Preview of BSR16 PDF

Datasheet Specifications

Part number: BSR16
Manufacturer: ON Semiconductor ↗
File Size: 169.42 KB
Datasheet: BSR16-ONSemiconductor.pdf
Description: PNP Epitaxial Silicon Transistor

Applications

* involving pulsed or low duty cycle operations. THERMAL CHARACTERISTICS (TA = 25°C, unless otherwise specified) Symbol Parameter Max. PD Total Device Dissipation 350 Derate above 25_C 2.8 RθJA Thermal Resistance, Junction to 357 Ambient 3. Device mounted on FR
* 4 PCB 40 mm × 40 mm
