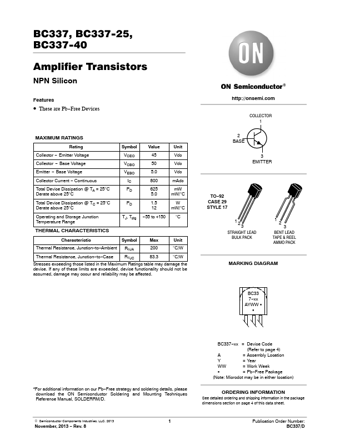

BC337, BC337-25, BC337-40
Amplifier Transistors
NPN Silicon
Features
• These are Pb−Free Devices
MAXIMUM RATINGS
Rating Collector − Emitter Voltage Collector − Base Voltage Emitter − Base Voltage Collector Current − Continuous Total Device Dissipation @ TA = 25°C Derate above 25°C
Symbol VCEO VCBO VEBO
IC PD
Value 45 50 5.0 800 625 5.0
Unit Vdc Vdc Vdc mAdc mW mW/°C
Total Device Dissipation @ TC = 25°C
PD
Derate above 25°C
1.5
W
12
mW/°C
Operating and Storage Junction Temperature Range
TJ, Tstg −55 to +150 °C
THERMAL CHARACTERISTICS
Characteristic
Symbol
Max
Unit
Thermal Resistance, Junction−to−Ambient RqJA
200
°C/W
Thermal Resistance, Junction−to−Case
RqJC
83.3
°C/W
Stresses exceeding those listed in the Maximum Ratings table may damage the device.
C33740 Datasheet
