C33725 - Bipolar Transistors

Description

Silicon Planar Epitaxial Transistors.

General Purpose Transistors Best Suited for use in Driver and Output Stages of Audio Amplifier.

Pin Configuration: 1.

Multicomp

📥 Download Datasheet

Datasheet Details

Part number	C33725
Manufacturer	Multicomp
File Size	125.24 KB
Description	Bipolar Transistors
Datasheet	C33725 Datasheet
Additional preview pages of the C33725 datasheet.

📁 Similar Datasheet

C33725 - NPN Epitaxial Silicon Transistor (Fairchild Semiconductor)
C33725 - Amplifier Transistors (ON Semiconductor)
C33725 - 500mA NPN general-purpose transistors (NXP)
C3371 - 2SC3371 (Inchange Semiconductor)
C33716 - Amplifier Transistors (ON Semiconductor)
C33716 - Amplifier Transistors (NXP)
C3374 - 2SC3374 (Hitachi Semiconductor)
C33740 - Amplifier Transistors (NXP)
C33740 - NPN Amplifier Transistors (ON Semiconductor)
C33740 - 500mA NPN general-purpose transistors (Philips)

Other Datasheets by Multicomp

Full PDF Text Transcription

Click to expand full text

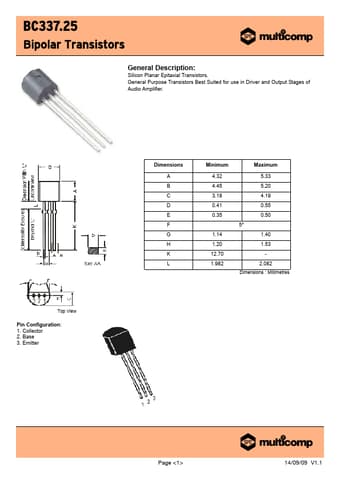

BC337.25 Bipolar Transistors General Description: Silicon Planar Epitaxial Transistors. General Purpose Transistors Best Suited for use in Driver and Output Stages of Audio Amplifier. Top View Pin Configuration: 1. Collector 2. Base 3. Emitter Dimensions A B C D E F G H K L Minimum 4.32 4.45 3.18 0.41 0.35 1.14 1.20 12.70 1.982 Maximum 5.33 5.20 4.19 0.55 0.50 5° 1.40 1.53 2.082 Dimensions : Millimetres Page <1> 14/09/09 V1.1 BC337.
