CAT22C10

256-Bit Nonvolatile CMOS Static RAM

CAT22C10 Features

* s Single 5V Supply s Fast RAM Access Times: s Low CMOS Power Consumption:

* 200ns

* 300ns s Infinite EEPROM to RAM Recall s CMOS and TTL Compatible I/O s Power Up/Down Protection s 100,000 Program/Erase Cycles (E2PROM)

* Active: 40mA Max.

* Standby: 30µA Max. s JEDEC St

CAT22C10 General Description

The CAT22C10 NVRAM is a 256-bit nonvolatile memory organized as 64 words x 4 bits. The high speed Static RAM array is bit for bit backed up by a nonvolatile EEPROM array which allows for easy transfer of data from RAM array to EEPROM (STORE) and from EEPROM to RAM (RECALL). STORE operations are comp.

CAT22C10 Datasheet (154.73 KB)

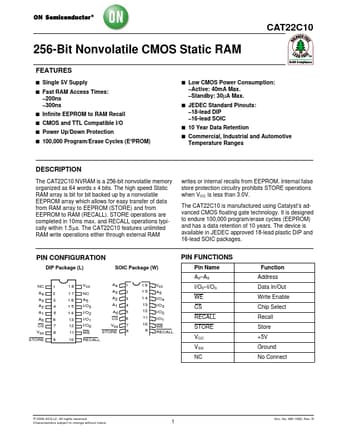

Preview of CAT22C10 PDF

Datasheet Details

Part number:

CAT22C10

Manufacturer:

ON Semiconductor ↗

File Size:

154.73 KB

Description:

256-bit nonvolatile cmos static ram.
