CAT24AA08 - 4-Kb and 8-Kb I2C CMOS Serial EEPROM

Product Overview

ON Semiconductor

Datasheet Details

Part number	CAT24AA08
Manufacturer	ON Semiconductor
File Size	191.41 KB
Description	4-Kb and 8-Kb I2C CMOS Serial EEPROM
Datasheet	CAT24AA08 Datasheet
Note	This datasheet PDF includes multiple part numbers: CAT24AA08, CAT24AA04. Please refer to the document for exact specifications by model.

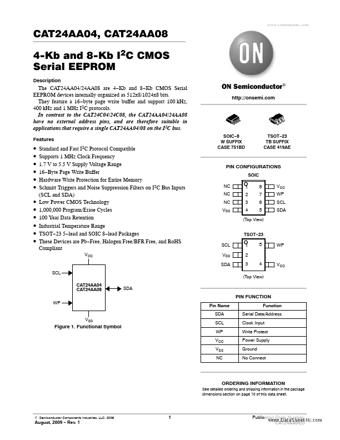

Additional preview pages of the CAT24AA08 datasheet.

Product details

Description

The CAT24AA04/24AA08 are 4 Kb and 8 Kb CMOS Serial EEPROM devices internally organized as 512x8/1024x8 bits. byte page write buffer and support 100 kHz, 400 kHz and 1 MHz I2C protocols.

Features

http://onsemi. com.
Standard and Fast I2C Protocol Compatible Supports 1 MHz Clock Frequency 1.7 V to 5.5 V Supply Voltage Range 16.
Byte Page Write Buffer Hardware Write Protection for Entire Memory Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs (SCL and SDA) Low Power CMOS Technology 1,000,000 Program/Erase Cycles 100 Year Data Retention Industrial T.
